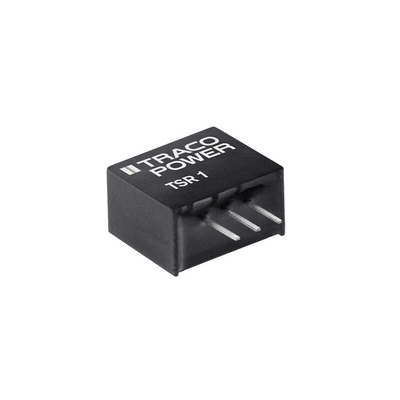

TSR 1-2450, TRACOPOWER Switching Regulator, Through Hole, 5V dc Output Voltage, 6.5 → 36V dc Input Voltage, 1A Output, Импульсные стабилизаторы

Step-Down Switching Regulator TSR 1 Series

The Tracopower TSR-1 series of step-down switching regulators are great replacement for linear regulators as they solve many power supply problems. These DC to DC converters are up to 96% more efficient with built-in capacitors and short circuit protection. Allowing full load operation up to +60°C ambient temperature without the need of any heat sink or forced cooling. The TSR-1 switching regulators provide other significant features over linear regulators. Providing better output accuracy (±2%), lower standby current of 2 mA and no requirement of external capacitors. The high efficiency and low standby power consumption makes these regulators an ideal solution for many battery powered applications.

Features & Benefits

Up to 96% efficiency
No heat-sink required
Pin compatible with LMxx linear regulators
SIP-package fits existing TO-220 footprint
Built in filter capacitors
Operation temperature range –40°C to +85°C
Short circuit protection
Wide input operating range
Excellent line / load regulation
Low standby current

TRACOPOWER TSR 1 Step-Down Switching Regulator

The TRACOPOWER TSR-1 series of step-down switching regulators are great replacement for linear regulators as they solve many power supply problems. These non-isolated DC to DC converters are up to 96% more efficient with built-in capacitors and short circuit protection. Allowing full load operation up to +60°C ambient temperature without the need of any heat sink or forced cooling. The TSR-1 switching regulators provide other significant features over linear regulators. Providing better output accuracy (±2%), lower standby current of 2 mA and no requirement of external capacitors.

Note: For input voltage higher than 32 VDC an external input capacitor (22 μF) is required.

Features and Benefits

• Up to 96% efficiency – No heat-sink required


• SIP-package fits existing TO-220 footprint


• Built in filter capacitors


• Operating temperature range –40°C to +85°C


• Short circuit protection


• Excellent line / load regulation


• Low standby current

Applications

The high efficiency and low standby power consumption makes these regulators an ideal solution for many battery powered applications.
