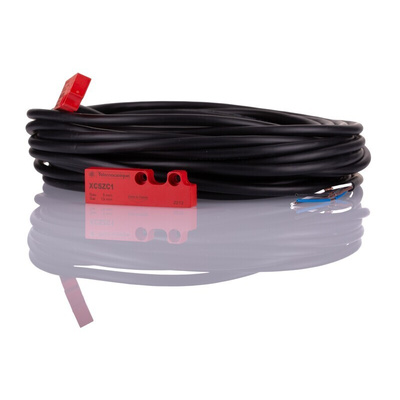

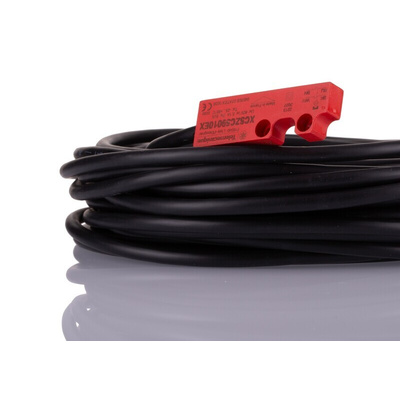

XCSDMC59010EX, Telemecanique Sensors XCS-DMC Series Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, NO/NC, 10m Cable, Выключатель

Telemecanique Sensors Non-Contact Safety Switch, Coded Actuator Type, 15mm Assured Tripping Distance - XCS-DMC Series - XCSDMC59010EX

Attach this non-contact safety switch from Telemecanique Sensors to guard doors to prevent exposure to hazardous equipment. Removing the guard causes a break between the magnetic-coded actuator and the safety switch, which in turn triggers the NC system for a quick response. Thanks to its compact dimensions of 51 (L) x 34 (W) x 7mm (D), you can use this unit on small guard doors, while its light weight of 0.101kg prevents unnecessary strain on your system.

Features & Benefits

• 15mm assured tripping distance, so it's highly sensitive to movement
• 3 approach directions for use on various guard types
• Plastic housing has an IP67 rating to indicate protection against dust and water to a depth of 1m

Applications

• Packaging machines
• Food and beverage processing
• Petrochemical plants

Can this switch be used in demanding conditions?

Yes. As well as being dustproof and waterproof, this unit has a wide operating temperature range of -25˚C to +85˚C, meaning you can use it in demanding conditions.

Does this safety switch come with an actuator?

Yes, this unit comes with a coded magnetic actuator, so it's ready to install without extra parts.
