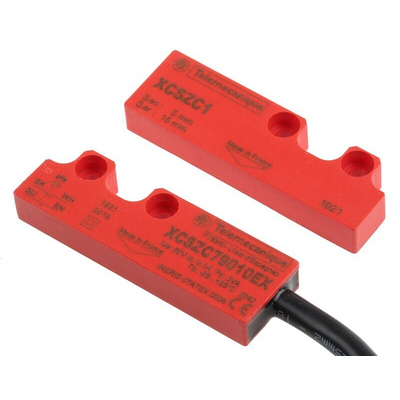

XCSDMC79010EX, Telemecanique Sensors XCS-DMC Series Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, 2NC, 10m Cable, Выключатель

Telemecanique Sensors Non-Contact Safety Switch, Magnetic Sensor Type, 10m Cable Length - XCS-DMC Series - XCSDMC79010EX

To protect personnel from hazardous machines, instal this non-contact safety switch from Telemecanique Sensors on your guard doors. If the guard is removed or shifted, the connection between the switch and coded actuator will be broken, instantly triggering the NC system for a rapid response. As this unit's assured tripping distance is 15mm, it's reliably sensitive to small movements. IP66 and IP67 waterproofing ratings mean this device is suited to machines that are washed or sprayed with liquid regularly.

Features & Benefits

• Three approach directions between the switch and actuator make them suitable for different guard types

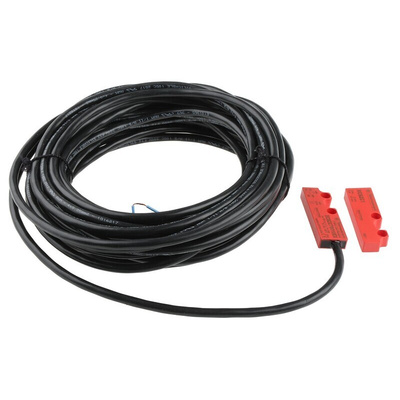

• Pre-installed 10m cable for use in larger work areas
• Light weight of 0.101kg puts minimal pressure on your system
• -25°C to +85°C operating air temperature range to allow for installation in demanding environments

Applications

• Potentially explosive atmospheres
• Dusty or gaseous environments
• Food industry

Is this unit compact?

Yes. With small dimensions of 51 (L) x 16 (W) x 7 mm (D), this switch is compact, so it's easy to mount in tighter areas.

What's the supply voltage of this unit?

This unit needs a supply of 24V DC, so it's easily compatible with standard supplies.
