2981363, Phoenix Contact DIN Rail Force Guided Relay, 24V dc Coil Voltage, 2 Pole, DPDT, Реле

Positive Action Coupling Relay - PSR URM Series

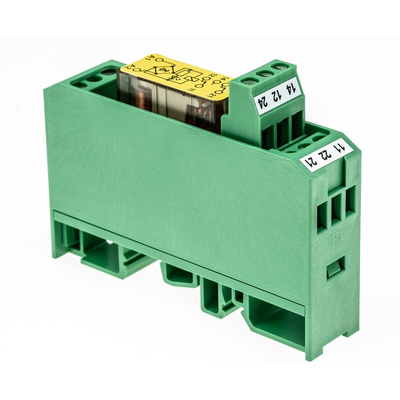

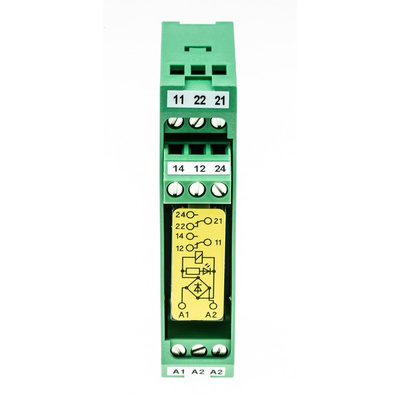

A DPDT universal safety relay with forcibly guided contacts from Phoenix Contact. The green IP20 safe coupling relay is an ideal solution for using in automation and process control, power management and Industrial applications.

Features and Benefits

• IP20 making it dust proof
• Safe isolation (input/output)
• DIN Rail mounting
• Operating temperature of -20°C to +50°C
• 2 changeover contacts
• Fixed screw terminal block
• Yellow LED display
• M3 screw connection

Standards

DIN EN 50178

Phoenix Contact Force-Guided Coupling Relay, 24V DC, DPDT - PSR-SCF- 24UC/URM/2X21 - 2981363

For enhanced safety in your industrial process, use this coupling relay from Phoenix Contact. It uses force-guided contacts to closely monitor contact performance in a circuit, preventing mechanical failure. A DPDT (double pole, double throw) contact configuration means the two internal circuits operate simultaneously, so a malfunction in one stops the other from operating. This lets you safely disengage the device for maintenance. A yellow LED (light-emitting diode) signal enables easy identification of the relay's status for quick diagnosis.
Thanks to the broad switching voltage range between 5 and 230V AC/DC, this versatile unit works effectively with both low voltage and medium voltage applications. It's housed in a PBT (polybutylene terephthalate) casing, which has enhanced impact resistance to withstand contact force. As it's IP20 (ingress protection) rated against dust and objects greater than 12mm in size, this is a suitable option for use in harsh environments. Compact dimensions of 17.5 (width), 75 (height) and 60.5mm (depth) make it ideal for systems short on space.

• Broad operating temperature range of -20°C to +50°C for use in demanding industrial environments
• Surge voltage rating of 4kV prevents damage from sudden voltage spikes
• Mechanical service life of 10,000,000 cycles for reliable long-term use
