2963763, Phoenix Contact Dual-Channel Emergency Stop, Safety Switch/Interlock Safety Relay, 24V ac/dc, 3 Safety Contacts, Реле безопасности

PSR Safety Relay, E-Stop & Safety Door Monitoring - Phoenix Contact

The PSR classic safety relays for single or two-channel emergency stop (E-Stop) and safety door monitoring from Phoenix Contact can be connected easily without the need for additional settings on the relay. They are an excellent solution when your system or machine only requires a few reliable safety functions.

Features and Benefits:

• Large selection of safety functions
• 1 signalling current path
• Manual monitored and automatic activation in one
• Basic or reinforced insulation
• Screw or spring-cage connection available
• Able to switch functions easily
• LED status display for fast wiring and clear diagnostics
• Fast installation and start-up

Standards

Up to Cat. 4/PL e (ISO 13849-1), SILCL 3 (IEC 62061), SIL 3 (IEC 61508).

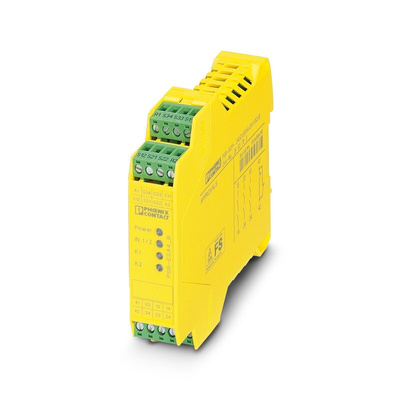

Phoenix Contact PSR Safety Relay, 24V AC/DC - PSR-SCP-24UC/ESA4/3X1/1X2/B - 2963763

Use this safety relay from Phoenix Contact to reduce risks in industrial applications. The component is used with emergency-stop buttons and safety doors to initiate a safe and prompt response when a hazard occurs, preventing damage to equipment and harm to operators. It has a wide inrush current capacity between 25mA and 6A to conveniently accommodate a variety of connected devices.
This component's compact dimensions of 99 (length), 22.5 (width) and 114.5mm (depth) make it a space-saving solution for setups with limited room. It has a green LED (light-emitting diode) indicator that lets you quickly check its status when a fault occurs. For transient voltage protection, it also has a suppressor diode that clamps surge voltages before they can damage the system, enhancing electrical safety. You'll find this relay used in factories and on assembly lines where safety is a priority.

• Screw terminals for quick and easy installation
• Silver tin oxide contacts for a reliable connections and corrosion resistance
• IP20 (ingress protection) rating indicates resistance to dust and objects larger than 12mm
• Mechanical service life of 10,000,000 cycles for long-term performance

Machine Guarding and Safety Range Overview

Datasheet 2963763
