2963750, Phoenix Contact Dual-Channel Emergency Stop, Safety Switch/Interlock Safety Relay, 24V ac/dc, 2 Safety Contacts, Реле безопасности

PSR Safety Relay, E-Stop & Safety Door Monitoring - Phoenix Contact

The PSR classic safety relays for single or two-channel emergency stop (E-Stop) and safety door monitoring from Phoenix Contact can be connected easily without the need for additional settings on the relay. They are an excellent solution when your system or machine only requires a few reliable safety functions.

Features and Benefits:

• Large selection of safety functions
• 1 signalling current path
• Manual monitored and automatic activation in one
• Basic or reinforced insulation
• Screw or spring-cage connection available
• Able to switch functions easily
• LED status display for fast wiring and clear diagnostics
• Fast installation and start-up

Standards

Up to Cat. 4/PL e (ISO 13849-1), SILCL 3 (IEC 62061), SIL 3 (IEC 61508).

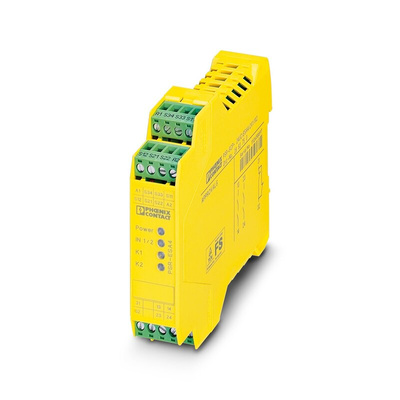

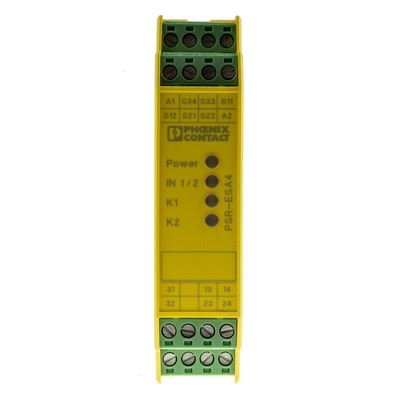

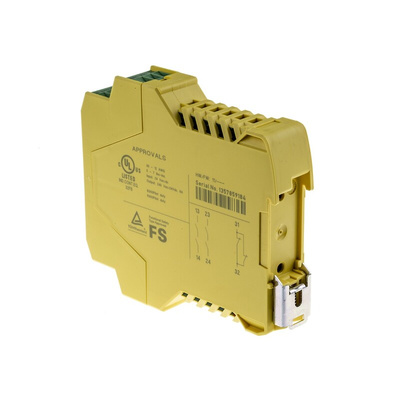

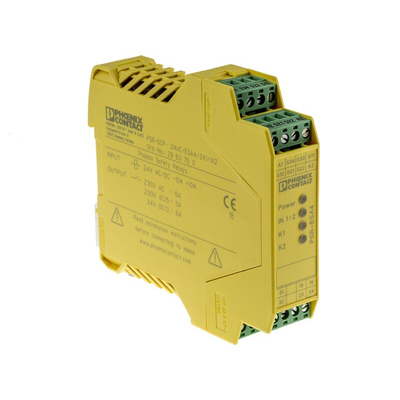

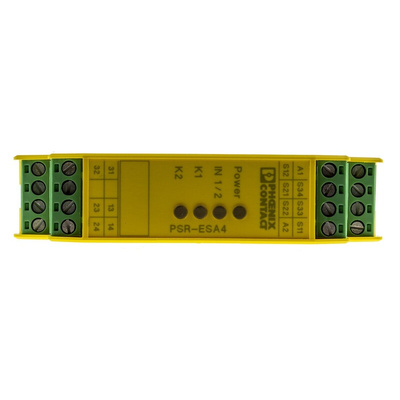

Phoenix Contact Multifunction Safety Relay, 24V AC/DC, 2 Channels - PSR-SCP- 24UC/ESA4/2X1/1X2 - 2963750

Reduce maintenance downtime in your industrial equipment by protecting it with this safety relay from Phoenix Contact. It uses force-guided contact to monitor circuits, cutting off power if it detects a malfunction. A green LED signal lets you easily check its status and operating voltage.
This device has a broad switching voltage range between 15 and 250V AC/DC, which makes it suitable for both low-voltage and high-voltage applications. Its silver-tin-oxide contacts are highly conductive and deliver reliable switching.
As the relay is compatible with both single-channel and two-channel devices, it's a versatile option. A quick one-second recovery time means you can depend on it for rapid use in demanding applications. For added durability, it's housed in polyamide, which is corrosion-resistant and safe to use in damp environments. Choose this relay to regulate emergency stops and doors.

• Wide operating temperature range between -20°C and +55°C for use in harsh environments
• Mechanical durability of 10,000,000 cycles for long-term use
• IP20 (ingress protection) rating means it's touch-proof
• Shock and vibration resistant for use with heavy-duty equipment
