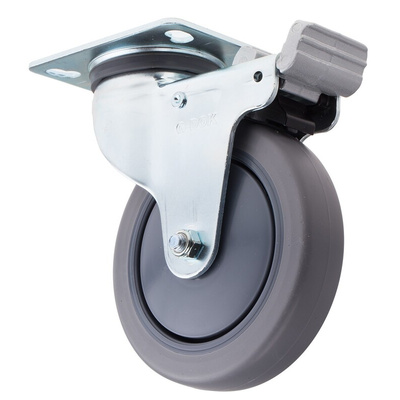

RS PRO Braked Swivel Castor Wheel, 90kg Capacity, 125mm Wheel

RS PRO Braked Swivel Castor, 90 kg Load Capacity, 125 mm Wheel Diameter

Use this castor wheel from RS PRO to transport items from one place to another more easily. It's designed to provide smooth, noiseless movement of carts, trolleys or dollies.
The wheel's rubber tyre is impact-resistant and durable so you can use it for a long time without the need for maintenance. It's heat-resistant so suited for extreme industrial environments. It also comes with a brake for the safety of trolleys or equipment.
Its hub is made of polypropylene (PP) material which gives the wheel low levels of friction and won't wear off on impact. To further reduce friction, the hub is equipped with ball bearings, providing smooth movements with seamless 360° rotation.

Features and Benefits

• Quiet operation features
• Fixing centres of 80 x 60 mm
• Fixing hole size of 9 mm
• Fixing plate dimensions of 100 x 85 mm
• Ball bearing hub type
• Polypropylene (PP) hub material
• Includes brake
• Load capacity of 90 kg
• Plate mounting type
• Four fixing holes
• Overall height of 165 mm
• Braked swivel rotation
• Rubber tyre material
• Medium-duty weight class
• Wheel diameter of 125 mm
• Wheel width of 30 mm

Dimensional Drawing

RS Pro Datasheet
