99.02.9.024.99, Finder Pluggable Function Module, LED Diode

55 Series Relay Accessories

Finder 55 series relay accessories including sockets, coil indication and EMC suppression modules

Features and Benefits

Depending on module selected, they can provide;
Suppression of coil back emf on switch-off
LED indication to show when the coil in energized
Protection against reverse polarity applied across the coil terminals
By-pass of troublesome leakage currents in the coil circuit

Note

The colour of RS stock 666-7987 is Black

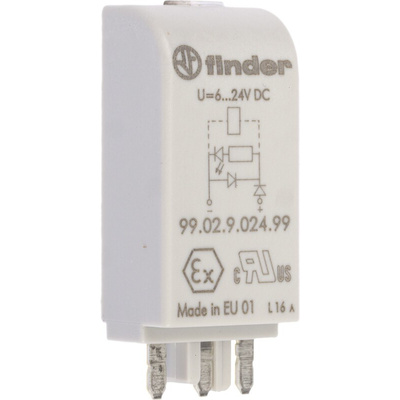

Finder Coil Indication and EMC Suppression Module - 99.02.9.024.99

Our Finder coil indication and EMC suppression module is used for a relay. The module features a green LED indicator and is predominantly used for DC (direct current) only.

Features & Benefits

• Used in a multitude of applications, such as: Industrial, commercial, power management, consumer electronics and automation & process control
• Green LED indicator
• Recovery diode module with standard polarity - used for DC operation only
• The reverse voltage peaks of the coil are short-circuited by the recovery diode (positive to terminal A1)
• Considered a relay module accessory, forming part of the Finder 99 series
• When the coil has power, the green LED indicator will light up
• The release time increases by an approximate factor from three to five, If you do not want an increased release time, use an RC module or a Varistor
• Compact design, allowing the user to use in a multitude of environments
• For use with Finders 85 relay module series
• White or black in colour
• Has a voltage range of 6 V DC - 24 V DC
