Pico Technology Data Logger

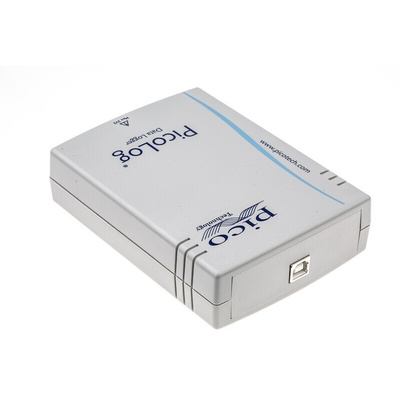

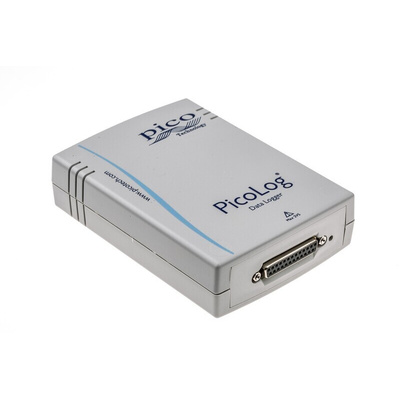

The Pico Technology PicoLog 1012 series is a 12-channel, 10-bit voltage data logger. It has independent software-configurable channels, ranges, scaling and control outputs. An optional external terminal board allows easy range extension and ease of terminating wires. This product is used for general-purpose voltage, sensor and transducer data logging.

Supplied with

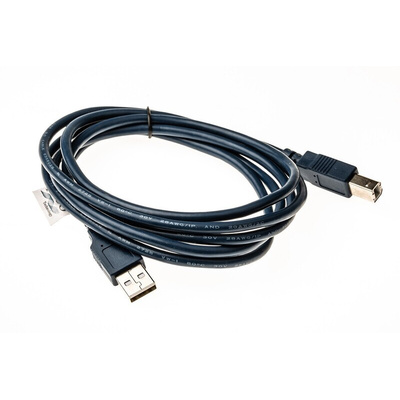

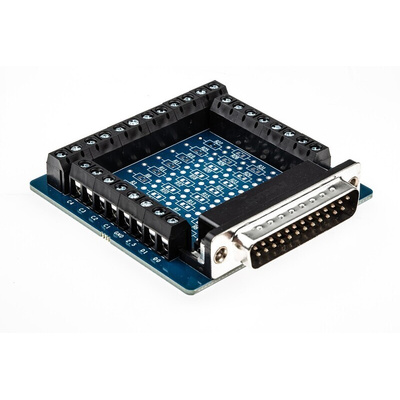

Terminal board for custom front-end circuitry, USB 2.0 lead, PicoLog and PicoScope software and software development kit

Features and Benefits

Accuracy is 0.5% @ 12 bits

Four software configurable digital output lines
Interface type is USB 2.0
3 sampling modes such as REAL-TIME, STREAMING and BLOCK MODE
Sample rate is 1MS/s
USB connected and mains powered
Software and pin-compatible with Pico USB ADC-11
Supports Windows XP and Vista (32 and 64-bit)
Maximum voltage measurement up to 2.5V
Number of readings per channel is 8000
Operating temperature ranges between 0°C and 70°C
