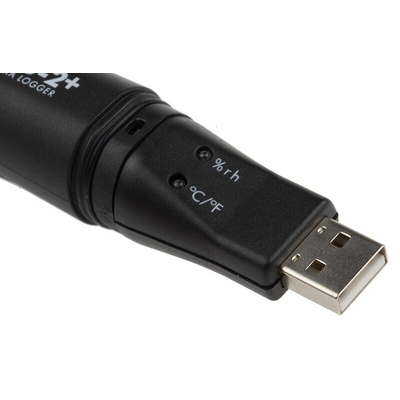

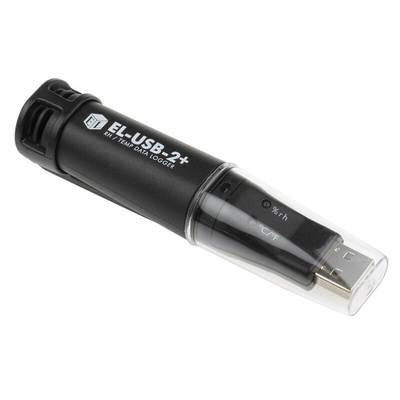

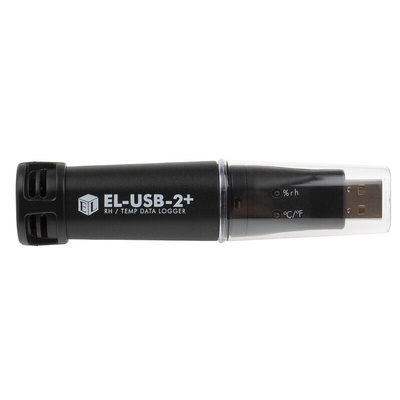

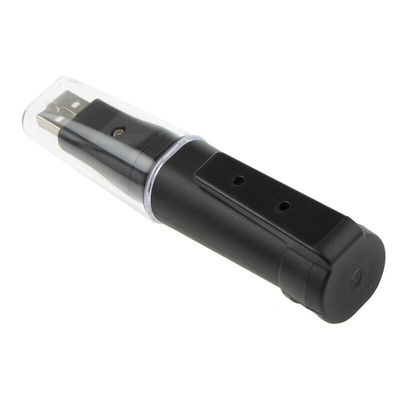

Lascar EL-USB-2+ Data Logger for Dew Point, Humidity, Temperature Measurement, Логгер

Lascar Data Loggers

The Lascar EL-USB-2 USB standalone data logger measures and stores over 16,000 temperature and humidity readings between -35°C and 80°C (-31°F to 176°F). It has a 0 to 100% RH range at a resolution of 0.5°C (1°F) and 0.5%RH. The user can easily set up the logger and view the downloaded data by plugging the data logger into a PC’s USB port and using the free EasyLog software. Data can then be graphed, printed and exported to other applications for a detailed analysis.

Set-up and data download from EasyLog data loggers are enabled by the EL-WIN-USB software available here: www. EasyLog USB. Com

Supplied with
1/2 AA battery and wall mount clip

Features and Benefits

The measurement range is between -35°C and 80°C (-31°F and 176°F)
Temperature measurement accuracy is ±0.45°C
Humidity measurement accuracy is ±2.05% RH
Logging rates between 10 seconds and 12 hours
Immediate and delayed logging start
User-programmable alarm thresholds for both temperature and humidity
Status indication via red/green LEDs
Battery life is up to 3 years
Supplied with a 1/2AA lithium metal battery
Export to Excel functionality

Applications

Facilities management
Housing and business premises
Outside environmental data
Agriculture and animal welfare
Veterinary
Museums and exhibitions

Certifications

IP67 Rated

EL-USB-2+ - Datasheet

Quick Start Guide

Lithium Battery Test Document
