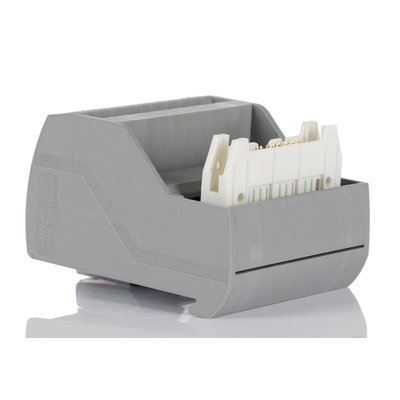

2315049, Phoenix Contact VIP-2 Series 20-Contact Male Interface Module, Flat Ribbon Cable Connector, DIN Rail, 1A, Модуль

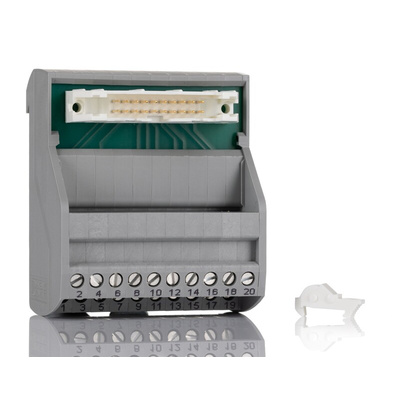

Phoenix Contact Interface Module, Screw Terminals, 2.54mm Pitch - VIP-2/SC/FLK20 - 2315049

Need to link automated kit to your control system? Get the job done with this Phoenix Contact interface module. As it directly connects your hardware and master device, it gets sensor signals where they're going every time. A 20-pin ribbon cable connector gives you handy plug-in connectivity, meaning you can swap between equipment without a fuss. Demanding signalling jobs are light work, as the unit carries loads up to 1A per contact.

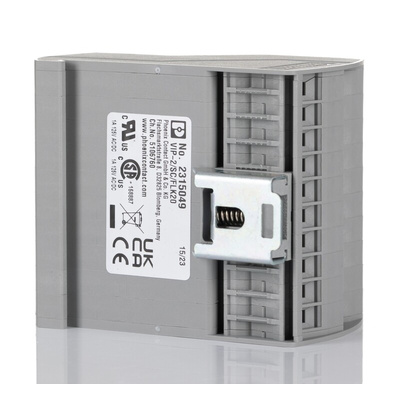

When it's time for installation, don't worry about breaking open the toolbox – this module snaps straight onto a DIN rail without the need for special tools. Its screw terminals get a firm hold on conductors sized between 0.2 and 4mm² to ensure a firm fix, even under vibration. As the block's robust PA housing provides effective impact protection, it shrugs off wear from knocks and scrapes.

Features & Benefits

• UL 94-V0 flammability rating means it self-extinguishes in under 10 seconds to halt the spread of flames
• Approved to DIN EN 50178 standards for use in power installations
• Slim measurements of 55.1 (W) x 65.5 (H) x 56mm (D) take up minimal cabinet space

VIP-2/SC/FLK20 VARIOFACE Module Data Sheet

Line Drawing - 2315049
