2315078, Phoenix Contact 40-Contact Male Interface Module, Flat Ribbon Cable Connector, 1A, Модуль

6669995
Номер производителя: 2315078Производитель: Phoenix Contact
Цена за шт.
22748.70 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Phoenix Contact D-sub interface module VIP VARIOFACE

The VIP VARIOFACE D-sub interface modules from Phoenix Contact are dIN rail mounted, plug-in D-sub modules that are designed to be slotted onto an NS35 rail. These interface modules have a 1:1 connection, feature screw connection terminal blocks and not to mention, adhere to the standard IEC 60603-13. The VIP VARIOFACE devices come in a variety of positions from 9 up to 50 to suit all your needs.

This VIP VARIOFACE module will allow you to connect to your other Phoenix Contact peripherals such as high pos connectors from the VIP & UMK range while also allowing effortless connection to FMK, FLMK and similar cabinet wiring technologies.

Features and benefits:

  • D-sub units transfer 2.5 A/125 V AC/DC

  • Metal footing to ensure reliability over time and optimum safety

  • IEC 60603-13 standard

  • Screw connection providing a super-secure and reliable connection.

Complete Line:

The VIP VARIOFACE series is apart of Phoenix Contacts vast and comprehensive portfolio. Complete line is a solution from Phoenix Contact that gives you a full range of products that all go hand-in-hand to make a perfect control cabinet. It covers all bases from connections, switching and measuring all the way to controlling, supplying and automation. Choosing complete line products makes it far more efficient to get a cabinet working.

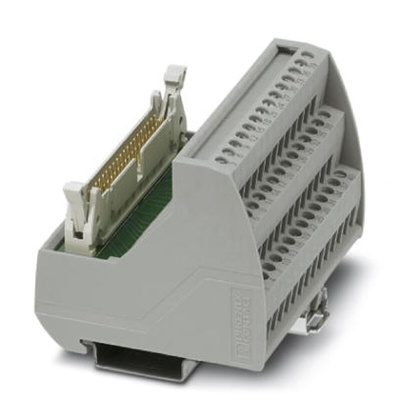

VIP-3/SC/FLK40 flat-ribbon module - 2315078

The 2315078 from Phoenix Contact is a 40-position flat ribbon cable module that is from Phoenix's premium range of VARIOFACE modules. Designed to be mounted on a DIN rail, this gives you modular ability to insert a ribbon-cable connection anywhere in your cabinet for not only ease of cabling, but maximum space efficiency. The unit is a 1:1 connection and features screw connecting terminal blocks on the output.

This device has convenient locking latches to keep your ribbon cable sturdy and built-in is a pin strip.

Features and benefits:

  • Nominal voltage of 60 VAC/DC

  • Compact design

  • Mounts to NS 32 or NS 35/7.5 DIN rails

  • Click-in lock latches for your ribbon cable, simply plug-in and listen for a click - screw connection on the output for sturdy connections

  • Simply mount this interface module to your DIN rail for convenient ribbon access

  • Has a strong metal footing

  • IEC 60603-13 rating

Complete Line:

The VARIOFACE series is apart of Phoenix Contacts vast and comprehensive portfolio. Complete line is a solution from Phoenix Contact that gives you a full range of products that all go hand-in-hand to make a perfect control cabinet. It covers all bases from connections, switching and measuring all the way to controlling, supplying and automation. Choosing complete line products makes it far more efficient to get a cabinet working.

Техническая спецификация
pdf2315078 Datasheet
pdf2315078 Instructions
Глубина:
68.8мм
Длина:
77.4мм
Кол-во контактов:
40
Номинал тока:
1A
Номинальное напряжение:
60 В перем./пост. тока
Ориентация корпуса:
Прямой
Рабочая температура - максимальная:
+50°C
Рабочая температура - минимальная:
-20°C
Размер провода:
24 → 12 AWG
Размеры:
77.4 x 60.8 x 68.8мм
Род:
Male
Тип коннектора:
Плоский ленточный кабель
Ширина:
60.8мм
