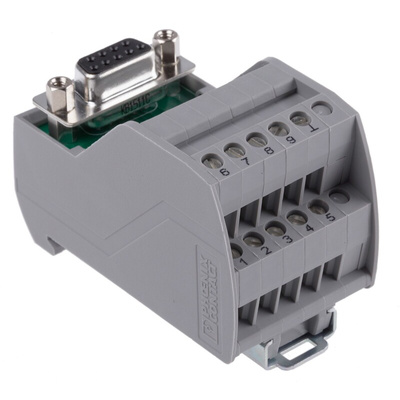

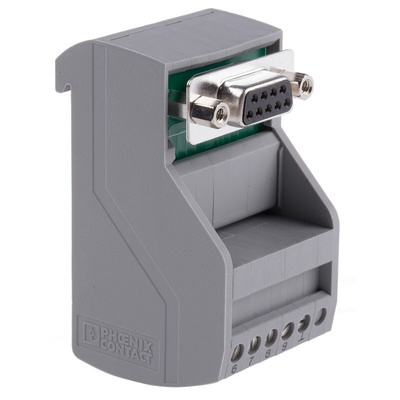

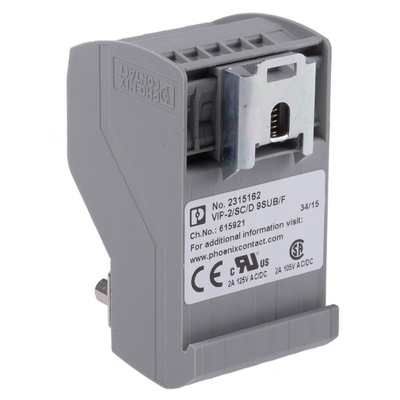

2315162, Phoenix Contact VIP-2 Series 9-Contact Female Interface Module, D-sub Connector, DIN Rail, 2A, Модуль

Phoenix Contact Interface Module, Any Mounting Position, M3 Screw Thread - VIP-2/SC/D 9SUB/F - 2315162

Add this interface module from Phoenix Contact to your system to make wired connections a breeze. Nine contacts allow you to run multiple circuits simultaneously, to help super-charge your productivity. Screw terminals are on hand to deliver rock-solid resistance against vibrations. Electrical connection is easy, thanks to the female D-sub socket.
This versatile unit is suitable for low-power systems, as it has a nominal voltage rating of 25V AC and 60V DC. It makes your life easier when it comes to wiring, as it accepts a wire size range from 0.2 to 4mm² for rigid conductors and 0.2 to 2.5mm² for flexible ones.
Flame-retardant material ensures that burning subsides in under 10 seconds, so the unit won't contribute to a workplace fire. DIN rail mounting means this assembly slots into your industrial infrastructure with a simple clip.

Features & Benefits

• 2A current rating suits low power applications
• Compact dimensions of 34.7 (L) x 45.1 (W) x 65.5mm (D) make it ideal for use in tight areas
• Fits 24 to 14AWG conductors for greater compatibility
• 1.2kV surge protection safeguards against hazardous over-voltages
• Performs reliably in a temperature range between -20°C and +50°C

Datasheet 2315162

Line Drawing - 2315162
