2315269, Phoenix Contact VIP Series 2-Contact Interface Module, DIN Rail Mount, 15A, Модуль

Phoenix Contact D-sub interface module VIP VARIOFACE

The VIP VARIOFACE D-sub interface modules from Phoenix Contact are dIN rail mounted, plug-in D-sub modules that are designed to be slotted onto an NS35 rail. These interface modules have a 1:1 connection, feature screw connection terminal blocks and not to mention, adhere to the standard IEC 60603-13. The VIP VARIOFACE devices come in a variety of positions from 9 up to 50 to suit all your needs.

This VIP VARIOFACE module will allow you to connect to your other Phoenix Contact peripherals such as high pos connectors from the VIP & UMK range while also allowing effortless connection to FMK, FLMK and similar cabinet wiring technologies.

Features and benefits:

• D-sub units transfer 2.5 A/125 V AC/DC


• Metal footing to ensure reliability over time and optimum safety


• IEC 60603-13 standard


• Screw connection providing a super-secure and reliable connection.

Complete Line:

The VIP VARIOFACE series is apart of Phoenix Contacts vast and comprehensive portfolio. Complete line is a solution from Phoenix Contact that gives you a full range of products that all go hand-in-hand to make a perfect control cabinet. It covers all bases from connections, switching and measuring all the way to controlling, supplying and automation. Choosing complete line products makes it far more efficient to get a cabinet working.

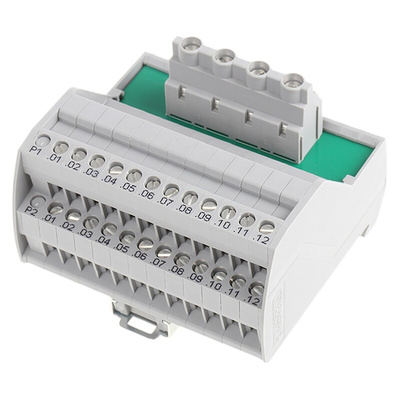

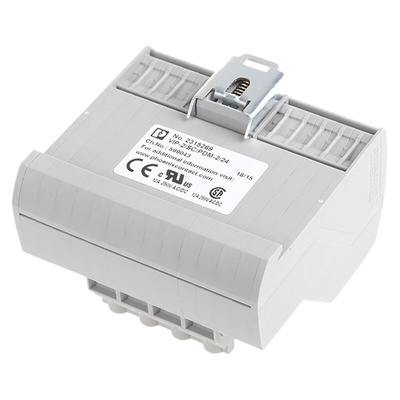

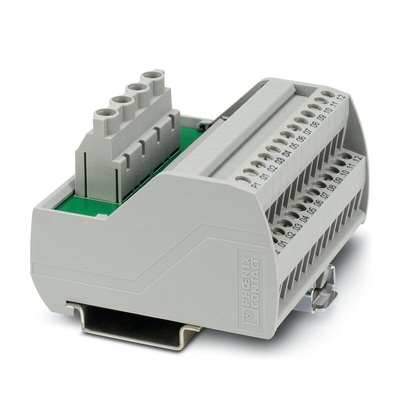

Phoenix Contact Interface Module, 2 Contacts, 250V AC/DC Voltage Rating - VIP-2/SC/PDM-2/24 - 2315269

This interface module from Phoenix Contact connects your appliances to power supplies. With its two contact rows, it handles two input voltages to let you conveniently separate high-voltage and low-voltage equipment. The unit supports both AC and DC voltages up to 250V, so it's compatible with many common electrical supplies. By providing currents up to 30A along each row, it handles demanding loads to efficiently distribute energy across your hardware.
The module has 12 outputs per level, giving you up to 24 power connections to suit large rail-mounted systems. Each output accepts wire sizes between 24 and 12AWG for versatility. As the block has body measurements of 57.1 (width) x 62 (height) x 69mm (depth), it's a compact choice for busy DIN rails. Screw terminals are on hand to secure your wiring against vibrations and minimise disruption caused by loose connections.

• Surge voltage rating of 2.2kV indicates protection against electrical faults
• PA housing provides electrical insulation to ensure safe handling
• Wide operating temperature range from -20°C to +50°C performs in intense conditions
• Meets IEC 62103 standards for safe use in power installations

Datasheet

Line Drawing - 2315269
