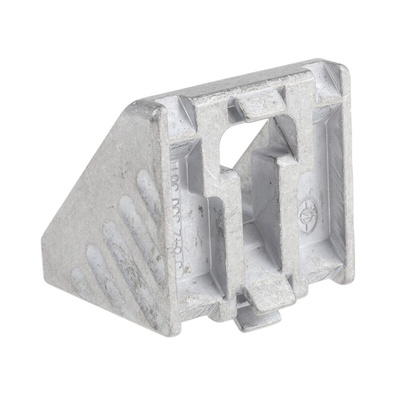

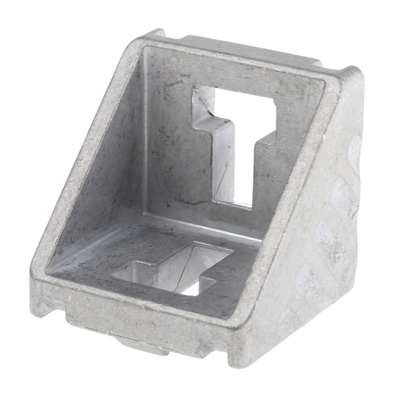

3 842 530 381, Bosch Rexroth M8 Angle Bracket Connecting Component, Strut Profile 50 mm, Groove Size 10mm

Angle Brackets

Bosch Rexroth angle brackets can be used to make a strong connection between 20 x 20, 30 x 30, 40 x 40, 45 x 45 or 50 x 50 profiles at an angle of 90°
.

Features & Benefits

Brackets are unpainted

Includes non-turning centring lugs for rapid and precise alignment

Product Application Information

Used for shelf supports, structure reinforcement, securing systems to the floor and so on.

Bosch Rexroth Connecting Component, Angle Bracket Type, 50mm Length - MGE Series - 3 842 530 381

Need to create strong and reliable joints in your infrastructure? Trust this angle bracket connecting component from Bosch Rexroth to take the strain. It fits a standard 10mm groove size and 50mm strut profile for wide compatibility with other modules. The built-in centering lugs make precise positioning easy. What's more, the unit's light 82g weight doesn't add unnecessary load to your setup, minimising stress. Aluminium material provides high tensile strength, so you can be sure this connector holds up its end of the bargain over a long service life.

Features & Benefits

• Standard M8 thread size for wide compatibility
• Profile finishing isn't required, so setup is speedy

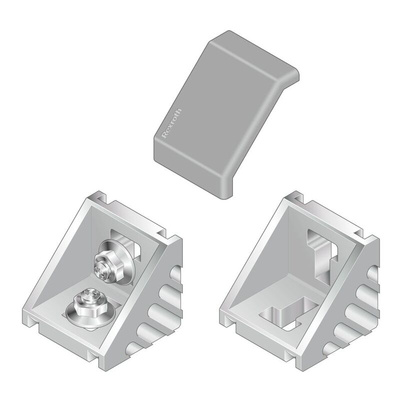

• Collar screws included for quick and secure installation

Applications

• Construction projects
• Storage solutions
• Distribution centres

How do I remove the centering lugs?

The centering lugs can be broken off with pliers, so there's no need for specialist tools.
