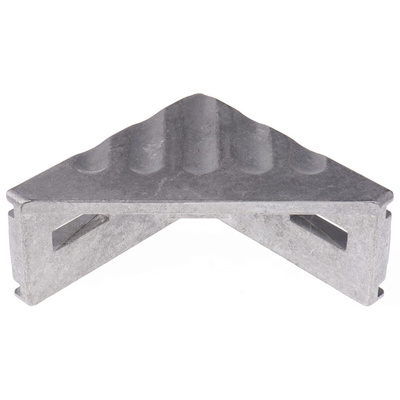

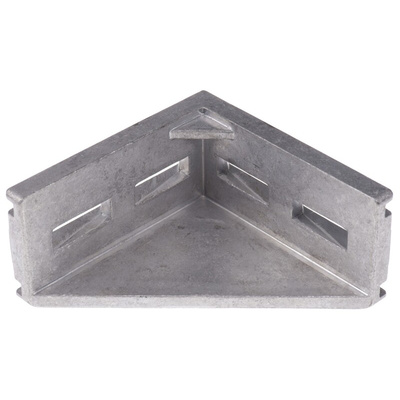

3 842 530 382, Bosch Rexroth M8 Angle Bracket Connecting Component, Strut Profile 50 mm, Groove Size 10mm

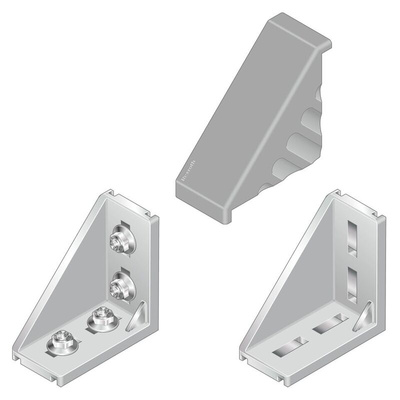

Angle Brackets

Bosch Rexroth angle brackets can be used to make a strong connection between 20 x 20, 30 x 30, 40 x 40, 45 x 45 or 50 x 50 profiles at an angle of 90°
.

Features & Benefits

Brackets are unpainted

Includes non-turning centring lugs for rapid and precise alignment

Product Application Information

Used for shelf supports, structure reinforcement, securing systems to the floor and so on.

Bosch Rexroth Connecting Component, Angle Bracket Type, Fits 10mm Groove - MGE Series - 3 842 530 382

Want serious structural integrity in lightning-fast time? Look to this connecting component from Bosch Rexroth. It's a hardwearing angle bracket made of robust die-cast aluminium, so it makes a dependable choice for reinforcing your structures. You can rest assured it takes the pressure in load-bearing applications as it handles shear (7500N), momentary (300-600Nm) and torsional forces (73Nm) with ease. Centering lugs help you connect quickly and precisely and there's no profile finishing needed, so you can count on speedy installation.

Features & Benefits

• 10mm groove slot lets you connect 50 (W) x 50mm (H) strut profiles at a 90° angle
• Centering lugs break off easily for installation on plates or at right angles
• Robust and durable, so easy to disconnect and reuse elsewhere

Applications

• Warehouses
• Industrial structural reinforcement
• Offices

Does this product offer ESD protection?

Yes, this connecting component's ESD protection means the risk of static discharge is minimal.
