TBL 060-112, TRACOPOWER TBL Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 12V dc dc Output, 4.5A Output, 54W, Блок питания

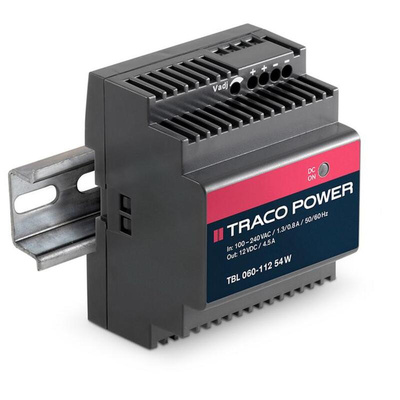

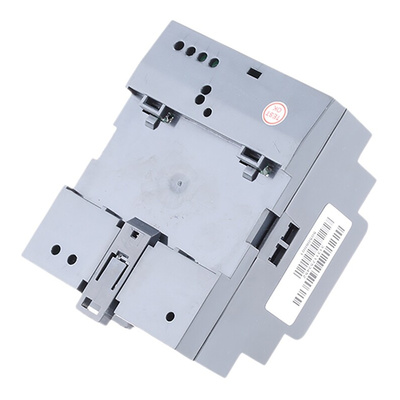

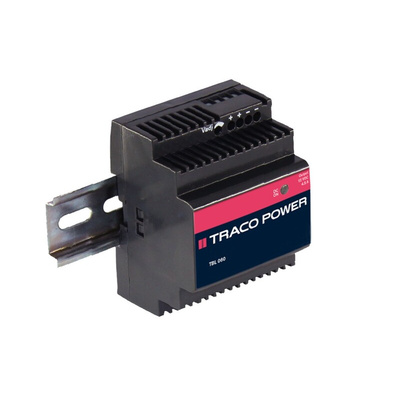

Traco Power DIN Rail Power Supply, Single Output, 83% Efficiency - TBL Series - TBL 060-112

Need an industrial energy source that's big on performance but small on size? Choose this DIN rail power supply from Traco Power. It's a switch-mode device that lets you change 85 to 264V AC inputs into a 12V DC output to match your equipment's needs. As part of the compact TBL series, this miniature marvel has dimensions of just 89.5 (H) x 59.5 (W) x 59.5mm (D), meaning it fits comfortably in control panels where space is at a premium. A hefty 83% efficiency rating means you can be sure you're not losing excess power to heat.

Features & Benefits

• Compatible with challenging conditions thanks to an operating temperature range of -25°C to +70°C
• Maximum power output of 54W makes this a robust choice for heavy-duty jobs
• 3kV AC isolation voltage keeps sensitive circuitry safe in the event of a fault

Applications

• Building automation
• Power management
• Process control

How can I tell if this device is working properly?

Thanks to a handy LED indicator, you can check the status of this module at a glance. If the light shows green, everything's running smoothly. Red indicates an overload or short circuit, so you can act quickly to solve the problem.

CE Declaration of Conformity TBL Series Traco

Datasheet

Household / Building Technology Catalogue

Industrial Power Solutions Catalogue

Selection Guide

Instruction Sheet - TBL 060-112
