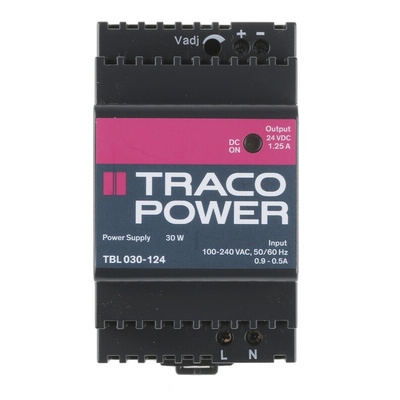

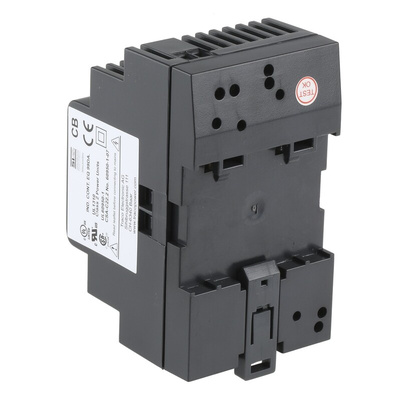

TBL 030-124, TRACOPOWER TBL Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 1.25A Output, 30W, Блок питания

Traco Power DIN Rail Power Supply, Single Phase, 83% Conversion Efficiency - TBL Series - TBL 030-124

Get your system the juice it needs with this DIN rail power supply from Traco Power. By providing power up to 30W, it handles plenty of automated components at once to keep processes flowing smoothly. As its output voltage adjusts between 24 and 28V DC, it's easy to dial up or down the product's power to match its system. Snapping the unit onto a rail makes for a quick installation without the hassle of tools. Thanks to its built-in overload and short-circuit protection, the device shuts down as soon as it detects faults to cut the risk of damage.

Features & Benefits

• Secure screw terminals grip conductors to stop disruption from movement
• Compact dimensions of 59.5 (L) x 52.5 (W) x 89.5mm (D), letting it slip into busy cabinets
• Conversion efficiency of around 83%, so it's a safe bet for energy-efficient power switching
• Wide input voltage range between 85 and 264V AC to fit in with many standard supplies

Applications

• Food production
• Manufacturing industry
• Packing plants

How do I know if I've connected this power supply properly?

The product's front plate has a handy LED indicator, clearly showing its power and connection status at a glance.

Datasheet

Household / Building Technology Catalogue

Industrial Power Solutions Catalogue

Selection Guide

Instruction Sheet - TBL Series
