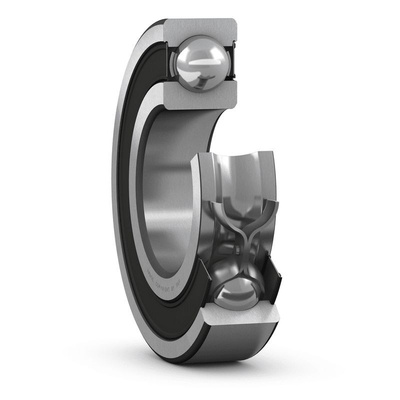

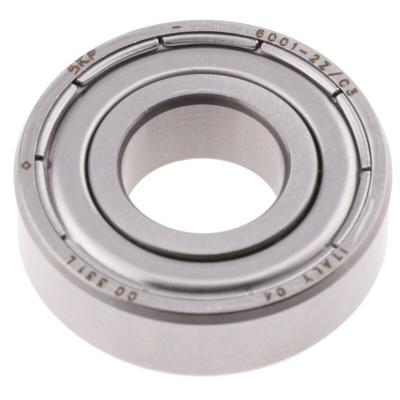

SKF 6001-2Z/C3 Single Row Deep Groove Ball Bearing- Both Sides Shielded 12mm I.D, 28mm O.D, Шарикоподшипник

SKF Plain Deep Groove Ball Bearing, 12 mm ID - 6001-2Z/C3

Choose this deep groove ball bearing from SKF for rotary equipment that runs at high or very high speeds. It can accommodate both radial and axial loads and has an inner diameter of 12 mm with an outer diameter of 28 mm. For reliable operation, metal shields on both sides stop dust, dirt and grease getting in. Because it generates low friction, this bearing is reliably hardwearing and energy-efficient. Easy to mount, it's found across industry, from production lines to distribution environments.

• Dynamic load rating of 5.4 kN
• Static load rating of 2.36 kN
• Race width of 8 mm
• Plain race type
• Parallel bore type
• Single row

Application Information

• Packaging
• Pharmaceutical and medical industries
• Printing
• Food and beverage production

Why is metal shielding of benefit to ball bearings?

Metal shielding significantly prolongs the service life of the bearing. It maintains the lubrication in the bearing while keeping contaminants out. Metal shields are often used when it's crucial to maintain a clean environment. They also generate low friction at high speeds, so use less power.

Bearing, ball, shield, 12mm ID, 28mm OD

Table 3: Radial internal clearance of deep groove ball bearings

SKF Bearing Designations
