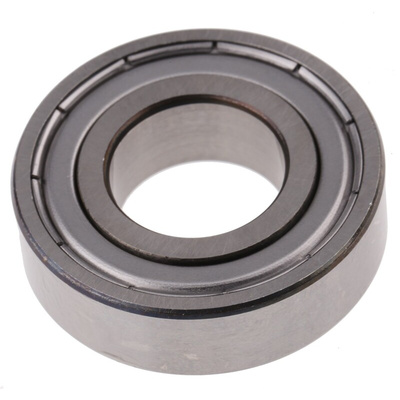

SKF 6002-2Z/C3 Single Row Deep Groove Ball Bearing- Both Sides Shielded 15mm I.D, 32mm O.D, Шарикоподшипник

SKF Shielded Deep-Groove Ball Bearing, 15mm ID, 32mm OD - 6002-2Z/C3

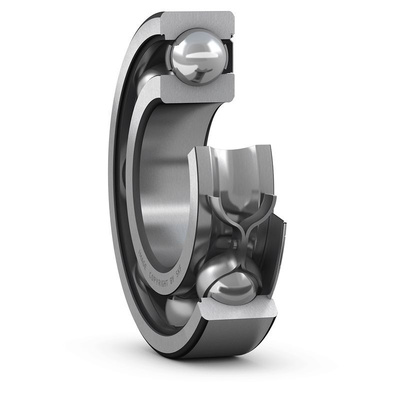

Looking for a convenient way to rotate and operate your moving machine parts? This deep-groove metric ball bearing from SKF is a versatile choice that can accommodate radial and axial loads in both directions. The single-row, non-separable design needs little maintenance, saving you both time and effort. It's made of steel, so it's robust, corrosion-resistant and will work reliably in harsh environments. Thanks to its metal shields, the bearing is protected against debris and retains lubricant effectively to minimise the risk of wear and tear.

• Limiting speed of 26,000rpm (rotations per minute) for use in high-speed applications
• Static load rating of 2.85kN and dynamic load rating of 5.85kN to handle heavy loads
• Low weight of just 0.03kg to avoid additional strain on your machinery

Applications

• Food and beverage processing
• Pharmaceutical and medical industries
• Engines and pumps

What type of internal clearance does this bearing have?

This bearing has a C3 internal clearance, which is slightly larger than normal. This allows the bearing to expand to accommodate higher temperatures generated by high-speed rotations.

Bearing, ball, shield, 15mm ID, 32mm OD

Table 3: Radial internal clearance of deep groove ball bearings
