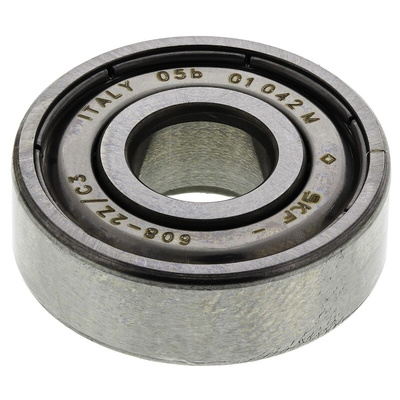

SKF 608-2Z/C3 Single Row Deep Groove Ball Bearing- Both Sides Shielded 8mm I.D, 22mm O.D, Шарикоподшипник

SKF Shielded Deep-Groove Ball Bearing, 8mm ID, 22mm OD - 608-2Z/C3

This SKF deep-groove ball bearing is a versatile component that accommodates both radial and axial loads. It produces lower levels of friction than many standard ball bearings, reducing the operating temperature and allowing your machinery to operate efficiently at high speeds. Metal shields on both sides of the bearing keep out damaging particles like dust, preventing malfunctions and prolonging the lifespan of the product. This bearing has a static load rating of 1.37kN and a dynamic load rating of 3.45kN, allowing it to support heavy stationary or moving loads.

• High-quality balls and smooth raceway finish ensure optimal lubrication while limiting vibrations and noise
• Steel material is robust and resistant to corrosion in harsh environments
• Limiting speed of 38,000rpm (rotations per minute) for use at high speeds

Applications

• Medical imaging equipment
• Industrial motors and pumps
• Printing industry

When should I use C3 ball bearings?

You should use a C3 ball bearing like this one for high-heat applications. This is because the clearance is greater than normal to allow room for the bearing to expand when subjected to high temperatures.

Bearing, ball, shield, 8mm ID, 22mm OD

Table 3: Radial internal clearance of deep groove ball bearings
