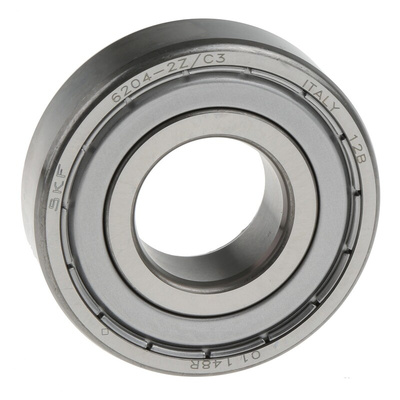

SKF 6204-2Z/C3 Single Row Deep Groove Ball Bearing- Both Sides Shielded 20mm I.D, 47mm O.D, Шарикоподшипник

SKF Deep-Groove Ball Bearing, 20mmID, 47mmOD - 6204-2Z/C3

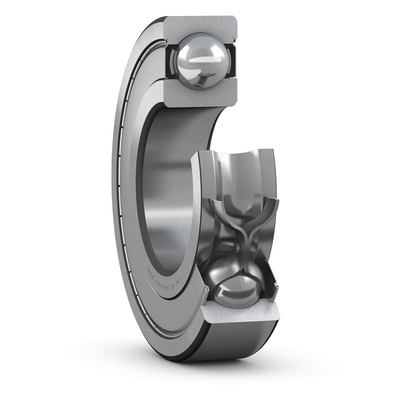

Use this deep-groove ball bearing from SKF when you need to accommodate simultaneous radial and axial loads in your structures or equipment. The bearing is made up of an outer ring and an inner ring, with a single row of bearings in the raceway between them. When you install an axle or shaft through its central bore, it will support smooth rotational motion with a low friction coefficient. A deep-groove construction means the balls fit snugly into the raceway, for improved stability and minimal vibration.

• Sealed end to prevent dust or small particles contaminating the workings, to ensure reliable performance
• Limiting speed of 32,000 r/min (revolutions per minute) supports high-velocity applications
• Dynamic load rating of 13.5kN to withstand substantial rotational force with minimal wear

Applications

• Medical equipment
• Printing machinery
• Industrial engines and pumps

What is this ball bearing made from?

This bearing is made from stainless steel, which offers a high level of durability and resistance to oxidation. This means that you can rely on it to perform over a long lifespan, with minimal maintenance required.

Bearing, ball, shield, 20mm ID, 47mm OD

Table 3: Radial internal clearance of deep groove ball bearings

Fitting And Installation Instructions

SKF Bearing Designations
