SKF 6205-2Z/C3 Single Row Deep Groove Ball Bearing- Both Sides Shielded 25mm I.D, 52mm O.D, Шарикоподшипник

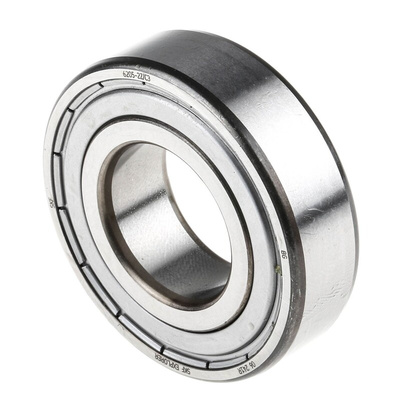

SKF Shielded Deep-Groove Ball Bearing, 25mm ID, 52mm OD - 6205-2Z/C3

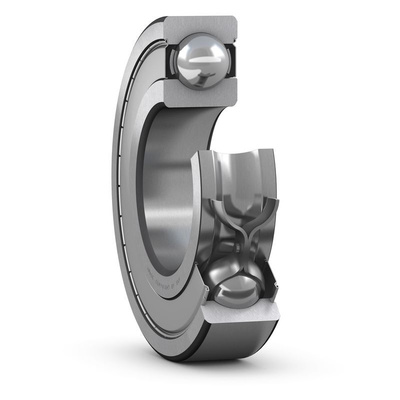

This versatile deep-groove ball bearing from SKF is a convenient way to support both axial and radial loads. It operates in both directions while reducing friction. High-quality bearing balls and the advanced finish of the raceway improve lubrication to reduce noise and vibrations, ensuring that your machinery runs quietly and smoothly. The bearing is designed to support heavy-duty stationary and moving loads thanks to its static load rating of 7.8kN and its dynamic load rating of 14.8kN.

• Metal shields keep lubricant from leaking and prevent dust and other contaminants from entering the bearing, ensuring optimal performance
• Steel ball and cage material is robust and corrosion-resistant for use in harsh conditions
• Light weight of 0.13kg to avoid putting strain on machinery
• C3 internal clearance to accommodate expansion in high-heat applications

Applications

• Automotive industry
• Agricultural machinery
• Electronics manufacturing

Does this ball bearing have a speed limit?

This bearing has a limiting speed of 14,000rpm (rotations per minute), which means it can continuously operate up to this high speed without seizing or degenerating due to excessive heat.

Bearing, ball, shield, 25mm ID, 52mm OD
