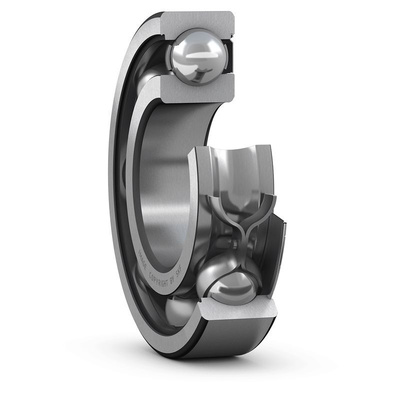

SKF 6208-2Z/C3 Single Row Deep Groove Ball Bearing- Both Sides Shielded 40mm I.D, 80mm O.D, Шарикоподшипник

SKF Deep-Groove Shielded Ball Bearing, 40mm ID, 80mm OD - 6208-2Z/C3

This versatile shielded deep-groove ball bearing from SKF supports axial and radial loads in both directions. Two dust-tight metal shields prevent the entry of dirt and other contaminants to protect the internal raceway and balls, prolonging the lifespan of the bearing. It has a plain raceway that's precision manufactured to reduce friction and deliver quiet, smooth operation. You'll find this type of bearing useful in both high-speed and very high-speed applications.

• Steel construction for a robust unit that's resistant to corrosion and withstands harsh environmental conditions
• Innovative design accommodates and prevents the misalignment of moving parts to ensure equipment isn't damaged
• Static load rating of 19kN and dynamic load rating of 32.5kN to support heavy loads

Applications

• Pharmaceutical industry
• Food and beverage industry
• Industrial engines and pumps

What are deep-groove ball bearings?

Deep-groove ball bearings are the most commonly used type of bearing. They consist of an inner and outer ring, a cage and bearing balls. The raceways between the rings have deep grooves that allow them to effectively support heavy loads at high speeds.

Table 3: Radial internal clearance of deep groove ball bearings

Bearing, ball, shield, 40mm ID, 80mm OD
