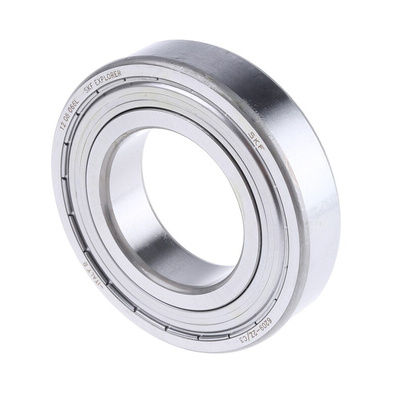

SKF 6209-2Z/C3 Single Row Deep Groove Ball Bearing- Both Sides Shielded 45mm I.D, 85mm O.D, Шарикоподшипник

SKF Plain Deep Groove Ball Bearing, 85 mm OD - 6209-2Z/C3

When you're setting up machine parts to handle both radial and axial loads, this deep groove ball bearing from SKF is an easy, effective solution. It's pre-lubricated, so it won't need additional greasing during operation. Steel construction makes it durable and highly resistant to corrosion. It also has shielded ends that lengthen the lifespan of the bearing by keeping out dust or other small particles and preventing contamination of the lubricant.

• Parallel bore type
• Plain race type
• Single row design
• Shielded ends
• Steel construction
• Dynamic load rating of 35.1 kN
• Static load rating of 21.6 kN
• Inner diameter of 45 mm
• Outer diameter of 85 mm
• Race width of 9 mm

Application Information

• Food and beverage industry
• Pharmaceuticals
• Medical industry
• Printing applications

Can this bearing handle high speeds?

This deep groove ball bearing is particularly suited to handling high rotary speeds. Its maximum speed is around 38,000 revolutions per minute.

What type of shields does this ball bearing have?

This ball bearing has two metal dust shields. These offer dust protection without increasing friction during operation.

Table 3: Radial internal clearance of deep groove ball bearings

Bearing, ball, shield, 45mm ID, 85mm OD

SKF Bearing Designations
