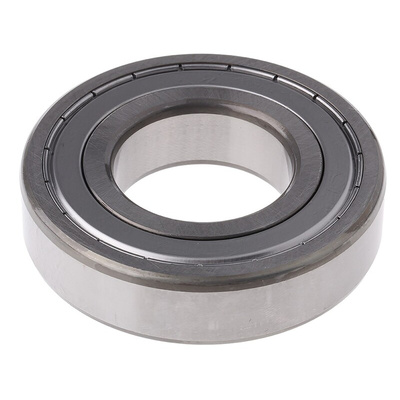

SKF 6207-2Z/C3 Single Row Deep Groove Ball Bearing- Both Sides Shielded 35mm I.D, 72mm O.D, Шарикоподшипник

SKF Ball Bearing, Deep-Groove Bearing Type, Shielded, 35mm ID, 72mm OD - 6207-2Z/C3

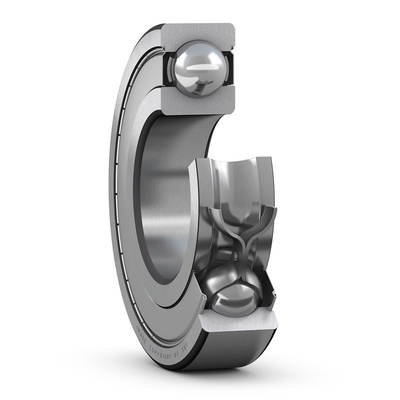

Need a bearing that can handle axial and radial loads in both directions? Use this deep-groove single-row ball bearing from SKF. As it's made from steel, it's protected against wear and corrosion, so it's suitable for use in damp and humid work areas. The cage inside the unit maintains a precise distance between the balls to suppress noise and support efficient movement at high speeds. As this parallel-bore plain-race unit is shielded, its grease and internal workings are protected from dirt and other contaminants for durability.

• Steel shield material to allow for high rotational speeds
• Dynamic load rating of 27kN for carrying heavy loads
• Deep-groove bearing type limits noise
• Balls are caged for protection against wear and lubricant leakage

Applications

• Food and beverage production
• Automation control
• Medical industry
• Printing presses

What's the static load rating of this ball bearing?

This ball bearing has a static load rating of 15.3kN, so it's capable of withstanding heavy loads even when it's stationary.

What dimensions does this ball bearing have?

The component's dimensions are 72 (outside diameter) x 35 (bore diameter) x 17mm (race width) for installation in setups with limited space.

Table 3: Radial internal clearance of deep groove ball bearings

Bearing, ball, shield, 35mm ID, 72mm OD
