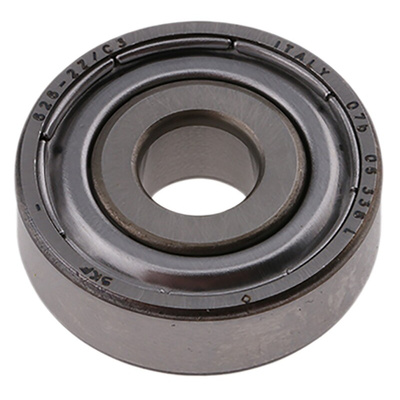

SKF 626-2Z/C3 Single Row Deep Groove Ball Bearing- Both Sides Shielded 6mm I.D, 19mm O.D, Шарикоподшипник

SKF Ball Bearing, Deep-Groove Bearing Type, Shielded, 6mm ID, 19mm OD - 626-2Z/C3

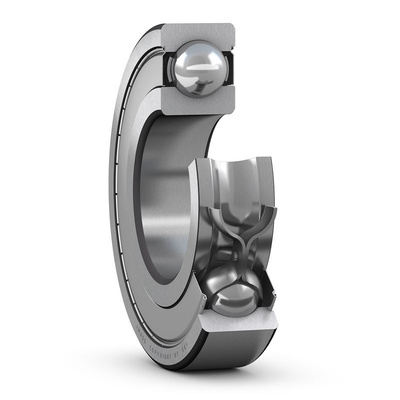

Need a component to provide higher rotational speeds on small shafts? Use this deep-groove ball bearing from SKF. This single-row parallel-bore unit has a steel shield to keep grease inside, limiting the friction between the inner and outer rings and allowing for high rotational speed. Thanks to the unit's steel cage, the spaces between the balls remain constant in the 6mm race width to prevent wear and ensure a long lifespan.

• Deep-groove type to withstand both axial and radial loads
• Steel cage to prevent wear and grease leakage
• Shielded to protect grease and rolling parts from dirt and other contaminants

Applications

• Engines and pumps
• Pharmaceutical industry
• Office equipment
• Hospital equipment

What are the load ratings of this ball bearing?

This ball bearing has a dynamic load rating of 2.34kN and a static load rating of 950N for flexibility.

What are the dimensions of this ball bearing?

With an inner ring diameter of 6mm and an outer ring diameter of 19mm, this ball bearing is suitable for installation in confined spaces.

Table 3: Radial internal clearance of deep groove ball bearings

Bearing, ball, shield, 6mm ID, 19mm OD
