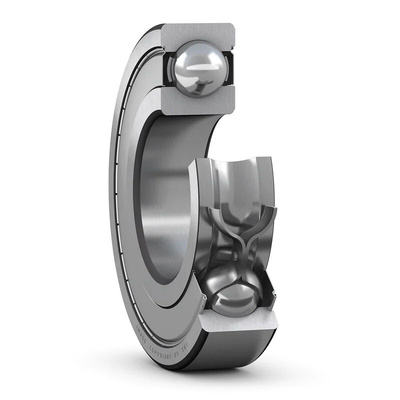

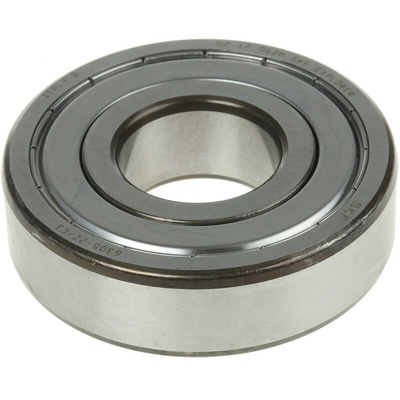

SKF 6305-2Z/C3 Single Row Deep Groove Ball Bearing- Both Sides Shielded 25mm I.D, 62mm O.D, Шарикоподшипник

SKF Ball Bearing, Deep-Groove Bearing Type, 25mm ID, 62mm OD - 6305-2Z/C3

Get your rotating machine shaft up to speed using this deep-groove ball bearing from SKF. Its simple design, consisting of a single row of pre-lubricated rolling elements set on a plain raceway, minimises maintenance and ensures a fatigue-free service life. Shields on both sides of the unit stop dirt from getting inside and contaminating the raceway, as well as preventing lubricant from escaping. This bearing handles radial and axial loads in both directions, so it's a solid and versatile option for your industrial application.

Features & Benefits

• Built-in cage keeps rolling elements stable to prevent excess noise and vibration
• Limiting speed of 13,000r/min and reference speed of 24,000r/min ensure it's suitable for fast-paced applications
• Hard-wearing steel body resists impact and corrosion

Applications

• Printing presses
• Packaging plants
• Transmission systems
• Railways
• Aerospace engineering

What type of cage does this ball bearing have?

The cage of this deep-groove ball bearing is made of robust sheet metal, which withstands hard impacts without deforming.

What's the bearing's internal clearance?

This bearing has a C3 radial internal clearance, so it's ideal for use in hot-running equipment, like an engine, as there's room for expansion between the bearing races.

Table 3: Radial internal clearance of deep groove ball bearings

Bearing, ball, shield, 25mm ID, 62mm OD

SKF Bearing Designations

Manual - 6001-2RSH

Datasheet - 6305-2Z/C3
