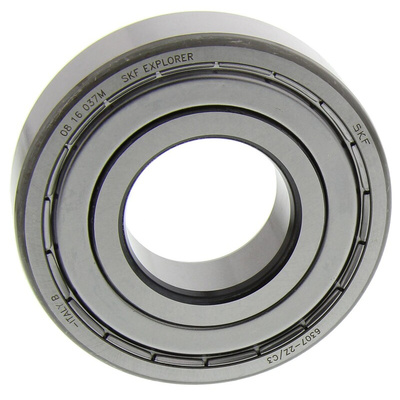

SKF 6307-2Z/C3 Single Row Deep Groove Ball Bearing- Both Sides Shielded 35mm I.D, 80mm O.D, Шарикоподшипник

SKF Ball Bearing, Deep-Groove Bearing Type, Single Row, 35mm ID, 80mm OD - 6307-2Z/C3

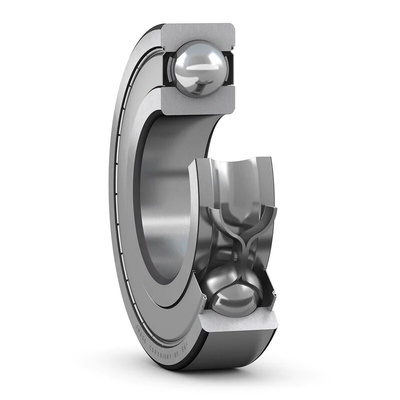

Get your rotating machine parts on the move with this deep-groove ball bearing from SKF. It features a single row of bearing steel balls with a shield on both sides to stop dirt getting in and to keep the lubricant trapped inside. There's a built-in cage, which holds the rolling elements securely in place and cuts down on play that can lead to vibration. Thanks to a limiting speed of 9,500r/min and reference speed of 19,000r/min, you can depend on this component to run reliably in high-speed equipment such as rotary power tools and wind turbines.

Features & Benefits

• Rugged steel body and sheet metal cage offers resistance to corrosion and impact
• Pre-lubricated with grease for an extended service life
• Handles axial and radial loads in both directions for versatility

Applications

• Automotive engineering
• Food and beverage production
• HVAC systems
• Office machinery
• Marine industry

What's the load rating of this deep-groove ball bearing?

A basic dynamic load rating of 35.1kN and a basic static load rating of 19kN mean you can rest assured that this bearing can take the strain in both moving and stationary applications.

Table 3: Radial internal clearance of deep groove ball bearings

Bearing, ball, shield, 35mm ID, 80mm OD

SKF Bearing Designations

Datasheet - 6307-2Z/C3
