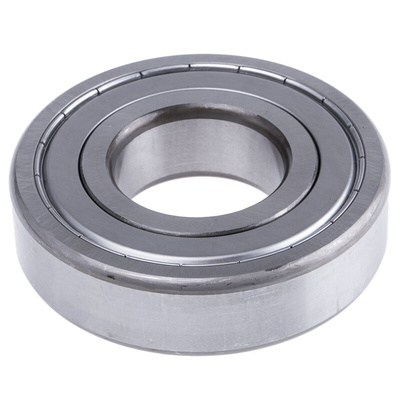

SKF 6308-2Z/C3 Single Row Deep Groove Ball Bearing- Both Sides Shielded 40mm I.D, 90mm O.D, Шарикоподшипник

SKF Shielded Deep-Groove Ball Bearing, 40mm ID, 90mm OD - 6308-2Z/C3

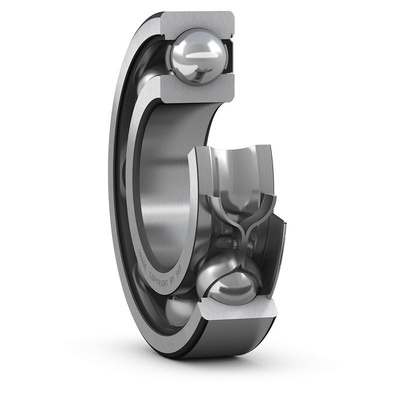

Need a versatile bearing that can accommodate axial and radial loads in both directions? Turn to this innovative shielded deep-groove ball bearing from SKF. It has a specially designed – and precision-engineered – plain raceway with top-quality bearing balls to minimise vibration and noise, ensuring your equipment operates smoothly. Thanks to its static load rating of 24kN and its dynamic load rating of 42.3kN, this bearing unit can support heavy stationary and moving loads.

• C3 clearance ensures the bearing has room for expansion between the races if needed for more efficient operation
• Two metal shields keep dust and other contaminants out of the workings to enhance performance and minimise maintenance
• Steel material is highly durable and resistant to corrosion for long-lasting performance
• Light weight of 0.63kg to reduce strain on your equipment

Applications

• Medical equipment and imaging instruments
• Printing machines
• Water pumps
• Wind turbines

Can I use this ball bearing in high-speed applications?

Thanks to its limiting speed of 8500rpm (rotations per minute), this ball bearing is suitable for use in high-speed applications.

Table 3: Radial internal clearance of deep groove ball bearings

Bearing, ball, shield, 40mm ID, 90mm OD

Fitting And Installation Instructions

SKF Bearing Designations

Catalogue - Rolling Bearings

Manual - SKF Coatings
