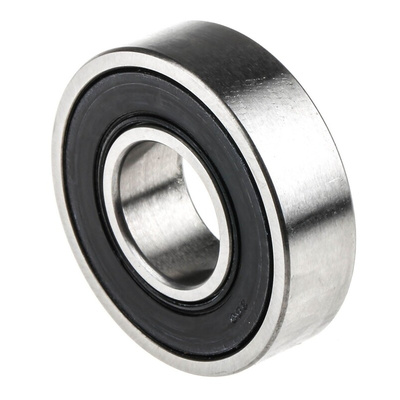

SKF 6001-2RSH/C3 Single Row Deep Groove Ball Bearing- Both Sides Sealed 12mm I.D, 28mm O.D, Шарикоподшипник

SKF Ball Bearing, Deep-Groove Bearing Type, Sealed, 12mm ID, 28mm OD - 6001-2RSH/C3

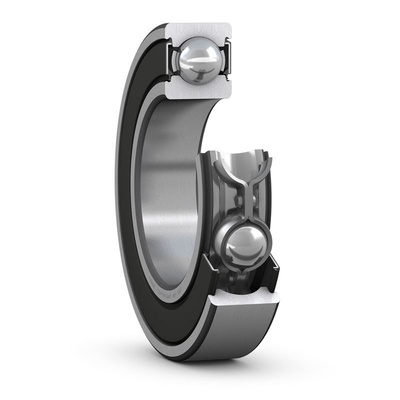

Choose this deep-groove single-row ball bearing from SKF for efficient motion in rotating machine parts. The balls are housed in an 8mm raceway with a contact seal that protects the lubricant from dirt and dust. Thanks to the sheet-metal cage inside the raceway, the distance between balls is constant, so you can be sure of stability at high speeds. As this unit is a deep-groove type, it can withstand both axial and radial loads, making it a versatile choice.

• Sheet-metal cage minimises wear in harsh settings
• Outer diameter of 28mm for use in compact setups
• Deep-groove type limits noise for minimal disruption
• Steel material ensures strength, durability and corrosion-resistance, even in damp conditions

Applications

• Manufacturing applications
• Industrial automation
• Electric motors
• Precision instruments

Will this bearing need to be re-lubricated?

No. As it's fitted with a contact seal, the bearing's lubricant stays inside the raceway, so there's no need for re-lubrication.

What's the load rating of this bearing?

This bearing has a dynamic load rating of 5.4kN and a static load rating of 2.36kN for heavy-duty applications.

Bearing, ball, sealed, 12mm ID, 28mm OD
