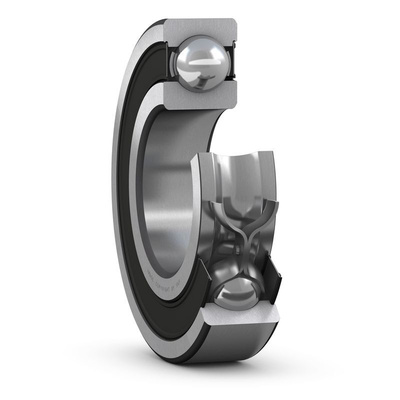

SKF 6206-2RS1/C3 Single Row Deep Groove Ball Bearing- Both Sides Sealed 30mm I.D, 62mm O.D, Шарикоподшипник

SKF Shielded Deep-Groove Ball Bearing, 30mm ID, 62mm OD - 6206-2RS1/C3

Reduce the risk of premature bearing failure with this high-temperature deep-groove ball bearing from SKF. Its steel material makes it highly robust and resistant to corrosion and rust for use in tough industrial conditions. The unit is virtually maintenance-free as it contains lubrication that continually oils the bearing. Nitrile rubber seals stop the lubricant from leaking to eliminate the need for re-greasing. Choose this bearing for hot or dry environments and applications with low rotational speeds.

• Low levels of friction for lower power consumption and improved efficiency
• Low vibration and noise for a quiet working environment
• Static load rating of 11.2kN and dynamic load rating of 20.3kN to handle heavy loads effectively

Applications

• Metal processing
• Food and beverage industry
• Medical and pharmaceutical manufacturing

How is a bearing's radial clearance affected by the ambient temperature?

When conditions rise above the bearing's stabilisation temperature, thermal expansion and material structural changes occur. This can lead to an uncontrolled loss of internal radial clearance, resulting in seized bearings. By eliminating this risk, the SKF range of high-temperature bearings improves machine uptime and overall reliability. This bearing has C3 internal clearance, so it can operate at temperatures up to +350°C without failing.
