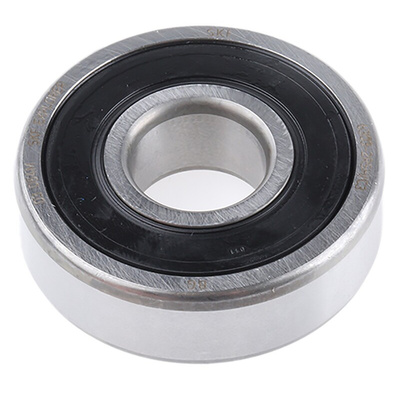

SKF 6303-2RSH/C3 Single Row Deep Groove Ball Bearing- Both Sides Sealed 17mm I.D, 47mm O.D, Шарикоподшипник

SKF Ball Bearing, Deep-Groove Bearing Type, Sealed, 17mm ID, 47mm OD - 6303-2RSH/C3

Need a ball bearing to take care of demanding loads? Choose this one from SKF, as it's rated for dynamic loads up to 14.3kN and static loads up to 6.55kN. As there are seals on both sides, contaminants can't clog the rolling elements, meaning the unit runs smoothly in dusty environments. The seals keep the lubricant in too, reducing the need for maintenance. As the bearing supports radial and axial loads in both directions, it's a popular choice across all industries.

Features & Benefits

• Handles misalignment between 2 and 10 minutes of arc to smooth out small mounting errors
• Durable sheet metal cage protects rolling parts against impact
• C3 radial internal clearance allows for expansion between the races, making the component ideal for hot environments and fast-paced applications

Applications

• Conveyor belt systems
• Material handling
• Aerospace industry

Does this bearing come pre-lubricated?

Yes, this unit comes pre-lubricated with grease, so it's ready to mount straight out of the box.

What are the bearing's speed ratings?

The bearing has a limiting speed of 11,000r/min and reference speed of 34,000r/min, so you can run it at high speeds without risk of overheating.

Table 3: Radial internal clearance of deep groove ball bearings

Bearing, ball, sealed, 17mm ID, 47mm OD

SKF Bearing Designations

Manual - 6001-2RSH

Datasheet - 6303-2RSH/C3
