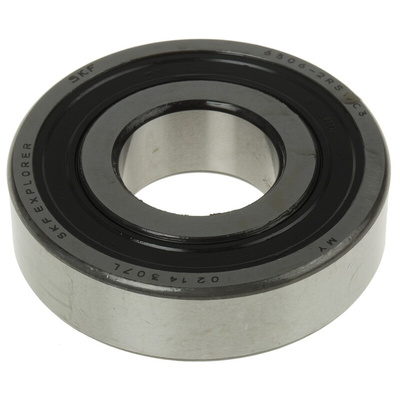

SKF 6306-2RS1/C3 Single Row Deep Groove Ball Bearing- Both Sides Sealed 30mm I.D, 72mm O.D, Шарикоподшипник

SKF Shielded Deep-Groove Ball Bearing, 30mm ID, 72mm OD - 6306-2RS1/C3

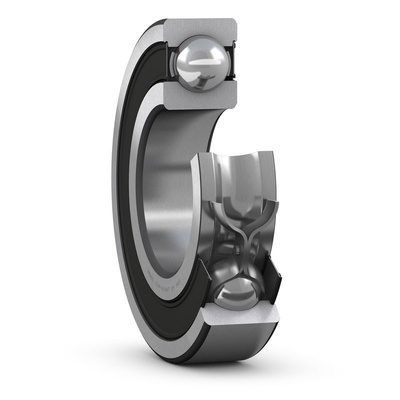

This versatile deep-groove ball bearing from SKF combines a long service life with high levels of reliability. It's one of the most widely used types of bearings as it's suitable for handling radial and axial load applications in both directions. Oil and chemical-resistant synthetic rubber seals fully protect the unit against contaminants, so there's little chance of dust, dirt or moisture affecting its good working function. The bearing produces low heat and friction for improved efficiency and quiet operation.

• Steel material for strength and resistance to corrosion to ensure reliable operation in harsh environments
• Reduced sensitivity to misalignment to prevent machine downtime
• Internal geometry optimised to accommodate heavy static loads of 16kN and dynamic loads of 29.6kN
• C3 clearance allows for expansion in high-heat applications

Applications

• Food and beverage industries
• Chemical industry
• Medical technology
• Packaging and material handling

Is this bearing suitable for use in high-speed applications?

Single-row, deep-groove ball bearings like this one are a good choice for applications that require higher rotational speeds as they typically produce less frictional heat. This particular bearing has a limiting speed of 6300rpm (rotations per minute).

Table 3: Radial internal clearance of deep groove ball bearings

Bearing, ball, sealed, 30mm ID, 72mm OD
