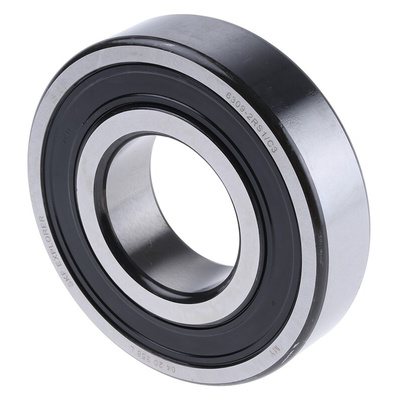

SKF 6309-2RS1/C3 Single Row Deep Groove Ball Bearing- Both Sides Sealed 45mm I.D, 100mm O.D, Шарикоподшипник

6671254
Номер производителя: 6309-2RS1/C3Производитель: SKF
Цена за шт.
13954.20 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Deep Groove Metric Ball Bearings - Sealed

SKF sealed deep groove ball bearings are versatile ball bearings that suit high and very high speeds, they will accommodate both radial load and axial load in both directions. The ball bearings need very little maintenance. SKF deep groove ball bearings come in a range of different sizes. This range is single row ball bearings.

Sealed (2RS1) bearings are fitted with two synthetic rubber seals to prevent leakage of lubricant and entry of dust, water and other harmful material.

Features and Benefits

- The seals are made from an oil and wear-resistant synthetic rubber with a steel reinforcement
- Operating temperature from -40°C to +120°C
- Accepts radial and axial loads
- Both standard and C3 clearance available

Application Information

-Food and Beverage Industry
-Pharmaceutical
-Medical industry
-Engines and Pumps
-Medical Industry
-Printing
-Versatile

More Information

What are deep groove ball bearings?

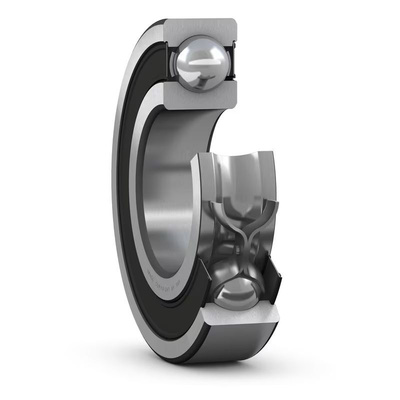

These are the most popular type of bearings and consists of an inner ring, outer ring, cage and the ball bearings. The bearings have deep raceway grooves. These type of bearings deliver high performance and high load capacity.

Why used sealed ball bearings?

Ball bearings that spin at high speeds require lubrication and a clean environment By having the ball bearings sealed this offers better protection against dirt and grease therefore the ball bearings have a longer lifespan.

SKF 3 Medium Series Ball Bearing, Steel, Single Row Deep Groove - 6309-2RS1/C3

This SKF ball bearing is a high quality single row deep groove ball bearing designed for a variety of applications in the automation, electronics, electrical, and mechanical industries. With steel ball material and C3 clearance, this bearing offers exceptional performance and durability.

Features & Benefits

• Single row deep groove design for precise operation and smooth performance
• Steel ball material ensures high strength and durability for long lasting use
• C3 bearing clearance provides optimal internal clearance for reduced friction and heat generation
• 3 Medium series design offers a balance of load capacity and speed capabilities
• Sealed on both sides for protection against contamination and prolonging bearing life
• 45mm inside diametre and 100mm outside diametre for compatibility with a range of applications
• Sheet metal cage material for high reliability and stable operation

Applications

• Ideal for use in conveyor systems for smooth and efficient material handling
• Suitable for electric motors to support shaft rotation with reduced friction
• Used in gearboxes to facilitate the movement of gears and components
• Perfect for industrial machinery to ensure precise and reliable operation

Can it handle high loads?

The SKF ball bearing is designed to handle high loads with its durable steel ball material.

Will it fit in standard applications?

Yes, with a 45mm inside diametre and 100mm outside diametre, this ball bearing is suitable for a wide range of standard applications.

Is it suitable for sealed environments?

Yes, this ball bearing is sealed on both sides for protection against contamination, making it ideal for sealed environments.

Техническая спецификация
pdfTable 3: Radial internal clearance of deep groove ball bearings
pdfBearing, ball, sealed, 45mm ID, 100mm OD
pdfSKF Bearing Designations
pdfCatalogue - SKF Coatings
Диаметр - внутренний:
45мм
Динамическая грузоподъемность:
55.3кН
Зазор подшипника:
C3
Код допуска:
C3
Код части подшипника:
6309
Количество рядов:
1
Материал:
Сталь
Материал клетки:
Листовой металл
Материал шара:
Сталь
Модель р:
6309
Наружный диаметр:
100мм
Подшипник - тип:
Single Row Deep Groove Ball Bearing
Серия подшипников:
3 Medium
Статическая грузоподъемность:
31.5кН
Тип кольца:
Plain
Тип отверстия:
Parallel
Уплотнительное устройство:
Both Sides Sealed
Ширина кольца:
25мм
