RNM-0505S, Recom RNM DC-DC Converter, 5V dc/ 200mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C Min, Преобразователь

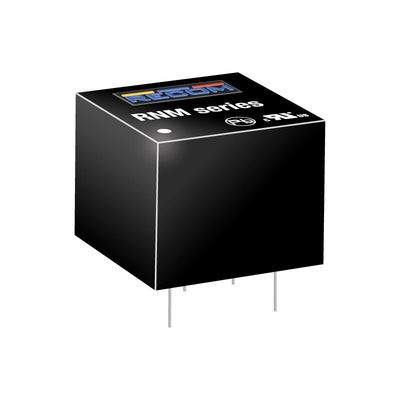

Recom 1W DIP Single Output Unregulated Isolated DC-DC Converter - RNM Series

Ultra compact 8.3 x 8.3 x 6.8mm
1kVdc Isolation voltage
DIP6 Micro size
UL94V-0 package material
High efficiency
No external components required

Note

Operating temperature is without derating
MBTF to MIL-HDBK 217F (25°C)

Standards

EN60950-1

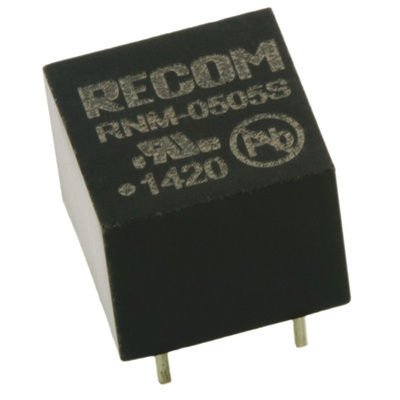

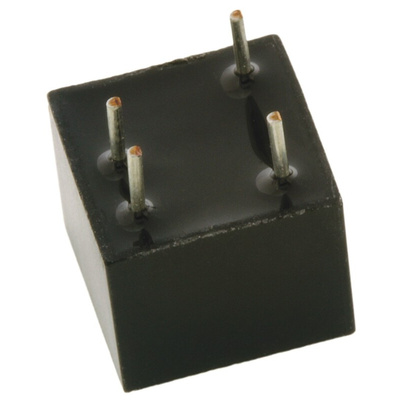

RECOM DC-DC Converter, 8.3 (L) x 8.3 (W) x 6.8mm (D), 1kV DC Isolation Voltage - RNM Series - RNM-0505S

Keep your currents in check with this DC-DC converter from RECOM. It levels down voltage inputs between 4.5 and 5.5V DC to a usable output of 5V DC so your applications get exactly what they need. Thes handy unit isolates incoming and outgoing feeds to form ground loops and improve safety. It also has a fully encapsulated SIP6 casing that shields users from live components to reduce the risk of electric shocks. With dimensions of 8.3 (L) x 8.3 (W) x 6.8mm (D), this dinky device saves room on packed PCBs.

Features & Benefits

• 70 to 78% efficiency helps extend battery life
• Through-hole mounting makes it quick and easy to install on a PCB
• Wide operating temperature range between -40°C and +85°C for use in challenging conditions

Applications

• Consumer electronics
• Medical systems
• Factory automated processes
• Testing and measuring instruments

How does a DC-DC converter change current values?

This converter uses a switching regulator, which is the most efficient way of converting direct current.

What's the power rating of this DC-DC converter?

This converter has a low power rating of 1W.
