RP10-2405SEW, Recom RP10 EW DC-DC Converter, 5V dc/ 2A Output, 9 → 36 V dc Input, 10W, Through Hole, +85°C Max Temp -20°C Min, Преобразователь

RECOM DC-DC Converter, 1.6kV DC Isolation Voltage Rating, 5V DC Output Voltage - RP10-EW Series - RP10-2405SEW

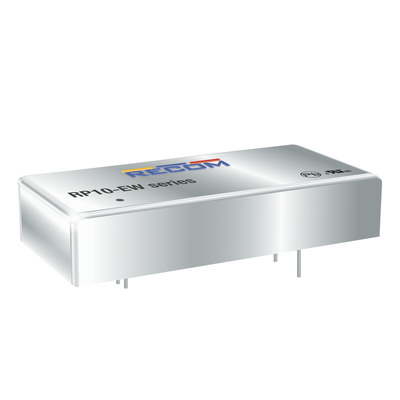

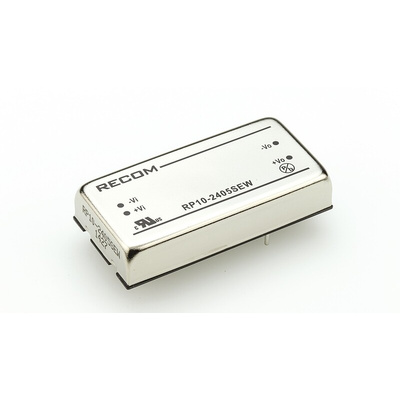

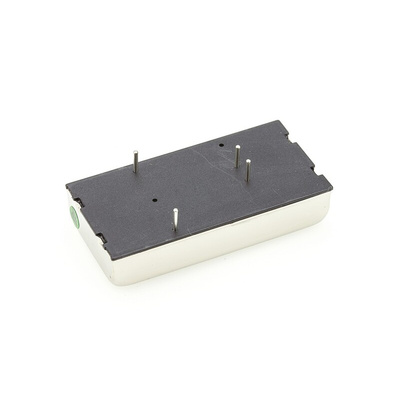

Need to get unstable voltages under control for the smooth operation of your equipment? This DC-DC converter from RECOM changes incoming voltages between 9 and 36V DC to an output of 5V DC to keep low-voltage systems powered up. The unit's a sure fit for densely packed PCBs, thanks to its compact dimensions of 50.8 (L) x 25.4 (W) x 10.2mm (H). Self-extinguishing epoxy potting boosts safety by helping to prevent the spread of fires. Installation is a breeze as you can simply punch the pins through the corresponding holes on your board and solder the converter in place.

Features & Benefits

• Efficiency of 80% assures you little energy is wasted as heat
• Reliable performance in harsh environments, thanks to a wide operating temperature range between -25°C and +85°C
• Light weight of 27g puts minimal strain on your PCB

Applications

• Aerospace engineering
• Medical devices
• Industrial control equipment
• Telecommunications networks

Does this DC-DC converter offer protection against electrical faults?

Yes, it has built-in protection against overvoltage, overload and short circuits for increased electrical safety.
