RCD-24-0.30/W, Recom LED Driver, 2 → 35V dc Output, 10.5W Output, 300mA Output, Constant Current Dimmable, Драйвер светодиодов

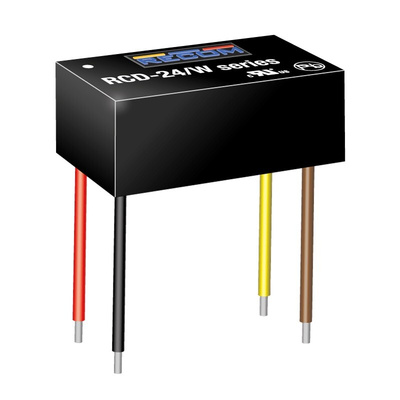

Constant Current LED Driver, RCD-24 Series - Wired

Non-isolated
Drives up to ten 2W power LEDs
Constant current source
Output current accuracy ±2%, Output current stability ±1%
Efficiency up to 96%
Wide input voltage range
Short circuit protection
Compact package

Note

Operating temperature is without derating.
MTBF to MIL-HDBK-217F (25°C).

RECOM LED Driver, Enclosed Type, 4.5 to 36V DC Input Voltage - RCD-24 Series - RCD-24-0.30/W

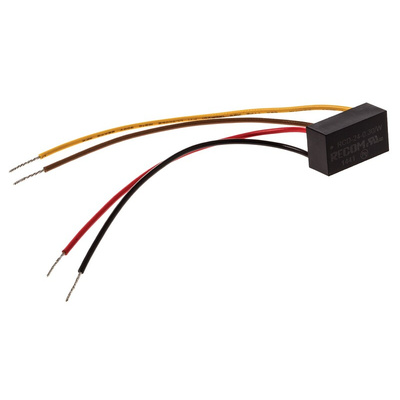

Looking for a high-efficiency LED driver for outdoor use? You'll take a shine to this encapsulated option from RECOM's RCD-24 series. Thanks to its IP67 rating, you can be sure it's waterproof against high-pressure jets from all directions, so it can easily shake off a bit of rain. The device uses constant current, meaning it works well with both single LEDs and LED chains in a series. Thanks to compact dimensions of 22.1 (L) x 12.6 (D) x 8.5mm (H), it's a practical choice when space is limited.

• PWM dimming operation of 0 to 4.35V DC for precise control over output levels
• Operating temperature range between -40°C and +85°C means it's compatible with challenging settings
• 605,000 hours mean time between failures, so you can expect a long service life

Applications

• LED signs
• Office lighting
• Downlights

What's the power output for this product?

This device produces a maximum of 10.5W. For safety, you should always choose an LED driver that outputs more power than your LEDs need so it's not running at full capacity, which can shorten its overall lifespan.
