RCD-24-0.35/W, Recom LED Driver, 2 → 35V dc Output, 12.25W Output, 350mA Output, Constant Current Dimmable, Драйвер светодиодов

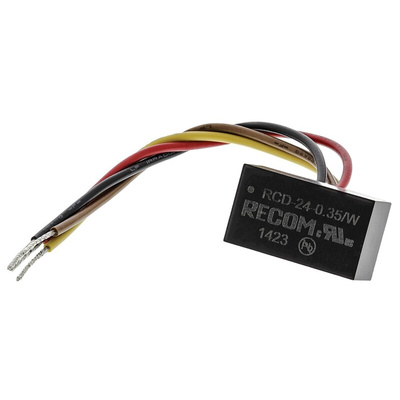

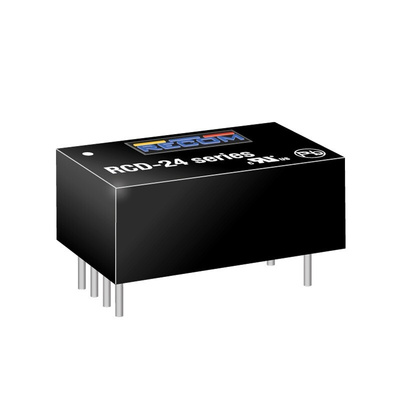

RECOM LED Driver, 4.5 to 36V DC Input Voltage Range, 0 to 350mA Output Current Range - RCD-24 Series - RCD-24-0.35/W

Reliably control your light system with this LED driver from RECOM. It features a broad input voltage range between 4.5 and 36V DC, so it's compatible with a wide variety of low-power systems. Thanks to an output current accuracy and current stability of ±1%, the unit delivers consistent performance. Its compact dimensions of 22.1 (L) x 12.6 (W) x 8.5mm (H) mean it's suitable for installation in setups with limited space.

Features & Benefits

• Broad operating temperature range between -40°C and +85°C for use in demanding conditions
• Non-conductive plastic housing prevents electric shocks to boost user safety
• IP67 rating means it's dust-tight and protected against submersion in 1m of water for up to 30 minutes

Applications

• Commercial buildings
• Residential LED systems
• Entertainment industry

What's a constant current LED driver?

CC drivers use variable voltage to deliver constant currents to your circuits. They're the most common solution for LED systems, as they offer greater control than constant voltage drivers.

How efficient is this item?

This product has a high efficiency of 96%, so there's minimal power loss during operation.
