RCD-24-0.70/W, Recom LED Driver, 2 → 35V dc Output, 24.5W Output, 700mA Output, Constant Current Dimmable, Драйвер светодиодов

RECOM LED Driver, Constant Current, 4.5 to 36V DC Input Voltage - RCD-24 Series - RCD-24-0.70/W

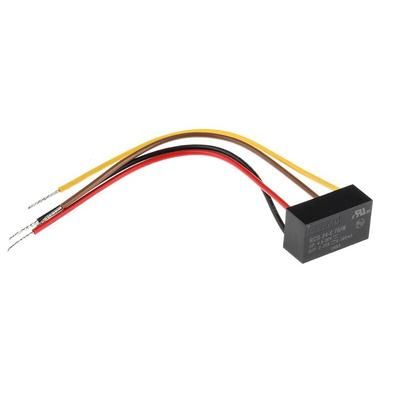

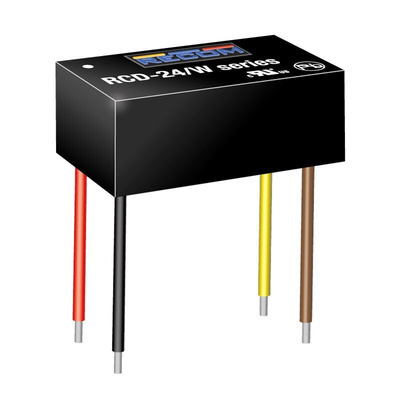

This wired LED driver from RECOM is a constant current solution that's ideal for large LED lighting setups. The device is efficient up to 96%, meaning power loss and heat build-up are minimal when running your internal or external lighting. A wide operating temperature range between -40°C and +71°C means you can rely on this unit even in challenging environmental conditions. The pulse-width modulation method lets you safely dim your lights from 0 to 4.35V DC.

Features & Benefits

• IP67 rating indicates the unit is dust-tight and waterproof to suit outdoor and industrial settings
• Wide input voltage range of 4.5 to 36V DC for compatibility with common power supplies

Applications

• Industrial facilities
• Commercial buildings
• Construction sites

What's the advantage of using a constant current LED driver?

A constant current unit doesn't violate the maximum current configuration of the LEDs, preventing burnout and maintaining consistent brightness.

Does this device come with any safety features?

This driver comes with integrated short-circuit protection, to safeguard users and attached equipment from potential electrical hazards.
