RCD-24-0.50/W, Recom LED Driver, 2 → 35V dc Output, 18W Output, 500mA Output, Constant Current Dimmable, Драйвер светодиодов

Constant Current LED Driver, RCD-24 Series - Wired

Non-isolated
Drives up to ten 2W power LEDs
Constant current source
Output current accuracy ±2%, Output current stability ±1%
Efficiency up to 96%
Wide input voltage range
Short circuit protection
Compact package

Note

Operating temperature is without derating.
MTBF to MIL-HDBK-217F (25°C).

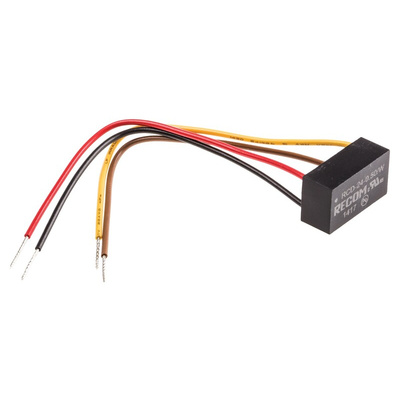

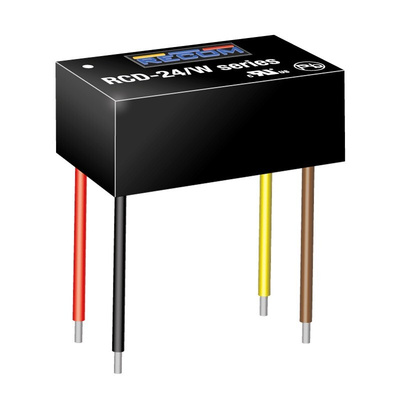

RECOM LED Driver, Wired Connections, 4.5 to 36V DC Input Voltage - RCD-24 Series - RCD-24-0.50/W

Smooth out the power supply to your light-up components with this LED driver from RECOM. By supplying up to 17.5W, it keeps up with demanding appliances to help your system tick along steadily. Efficient running is part of the package with this unit, as its 96% conversion efficiency means it keeps energy waste dialled down. Flexible wires let you hook up the driver without soldering, so adjusting your connections later is no trouble. With its built-in short-circuit protection, this is a reliable option that defends against damage from electrical faults.

Features & Benefits

• Insulating plastic casing and epoxy resin potting, so it minimises your exposure to hazardous electrical loads
• IP67-rated, meaning it's fully protected against dust and temporary shallow water submersion to take the pressure of harsh industrial conditions
• Colour-coded wires help identify connectors for simple wiring
• Maximum ripple voltage of 150mV to limit disruption from electrical noise

Applications

• Electronic advertising
• Signalling systems
• Telecommunications equipment

Can I dim my LED lights with this driver?

No, this unit doesn't come with digital or analogue dimming functions.
