RCD-24-0.60/W, Recom LED Driver, 2 → 35V dc Output, 21W Output, 600mA Output, Constant Current Dimmable, Драйвер светодиодов

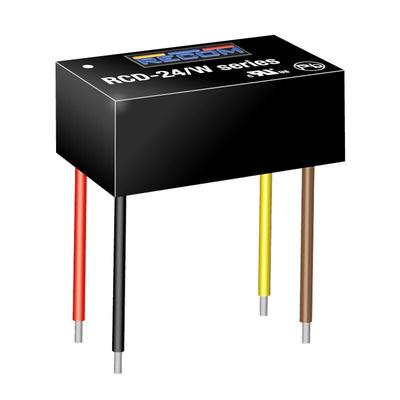

Constant Current LED Driver, RCD-24 Series - Wired

Non-isolated
Drives up to ten 2W power LEDs
Constant current source
Output current accuracy ±2%, Output current stability ±1%
Efficiency up to 96%
Wide input voltage range
Short circuit protection
Compact package

Note

Operating temperature is without derating.
MTBF to MIL-HDBK-217F (25°C).

RECOM LED Driver, Wired Connections, 150mV Maximum Ripple Voltage - RCD-24 Series - RCD-24-0.60/W

Make sure your lighting system shines bright with this RECOM LED driver. It sends a steady 21W around your array, helping to keep your power-hungry components going without so much as a flicker. The unit's tough enough for installation in demanding industrial conditions – an IP67 rating indicates it stands up to dust and limited submersion in shallow water. Integrated short-circuit protection means it helps stop electrical faults before they head downstream to your equipment. As it converts up to 96% of its input voltage, you can trust this device to stamp out energy waste.

Features & Benefits

• Quiescent current of 200μA saves power while switched off without needing to disconnect
• Low maximum ripple voltage of 150mV to help minimise disruption from electrical noise
• Compact dimensions of 22.1 (L) x 12.6 (W) x 8.5mm (H), so it's easy to mount in busy systems
• Works with input voltages between 4.5 and 36V DC to suit common power supplies

Applications

• Automotive industry
• Warehouses and storage facilities
• Offshore installations

How do I identify the connectors on this product?

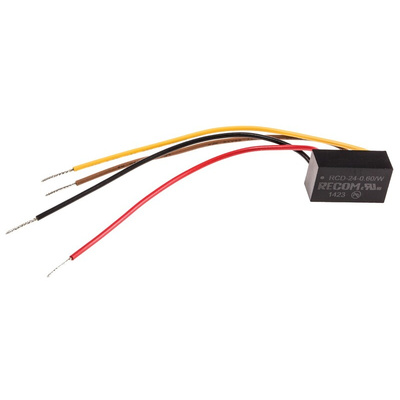

This unit's four wires are colour-coded red, yellow, black and brown, making it easy to identify each conductor.
