RS PRO Brass Male Pneumatic Quick Connect Coupling, 10mm Hose Barb, Муфта

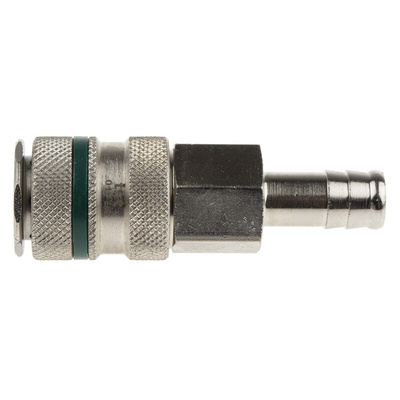

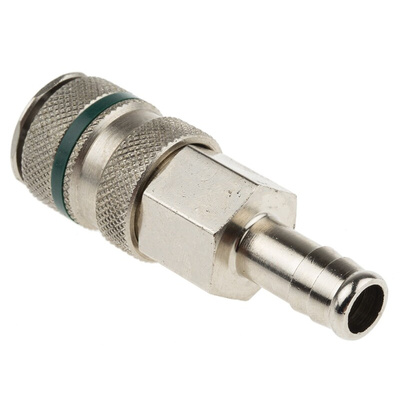

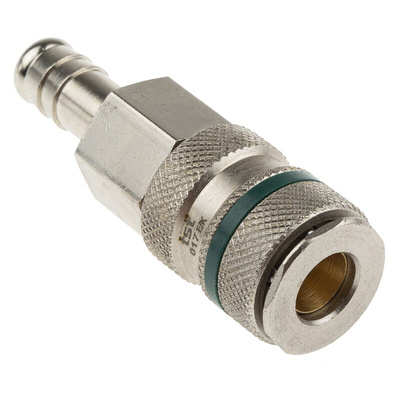

RS PRO Pneumatic Quick Connect Coupling Brass 10 mm Hose Barb

This pneumatic quick-connect coupling connector from RS PRO allows you to connect pipes, hoses or tubes with ease. It's handy for general purpose industrial air line applications and has a hose barb connection for use with soft tubing.

This industrial pattern connector offers a tight and reliable seal in diverse environmental conditions. It's effective for use at temperatures ranging from -20°C to +100°C and operates at up to a maximum pressure of 35 bar. Its nickel-plated brass construction resists corrosion, while a nitrile rubber seal ensures a secure connection to keep gas pressure constant. This product also allows for one-handed operation and offers single shut-off capabilities.

The pneumatic quick-coupling connector is interchangeable with Schrader Standard Series and Rectus 17 Series connectors. It's useful for a variety of pneumatic systems, including small air tools and dental equipment.

Features and Benefits

• Schrader NW5 and Rectus 17 connection standard
• 10 mm hose barb connection
• Male thread gender
• Nitrile rubber seal
• Maximum operating pressure of 35 bar
• Brass construction with a nickel-plated finish
• Minimum operating temperature of -20°C
• Maximum operating temperature of +100°C
