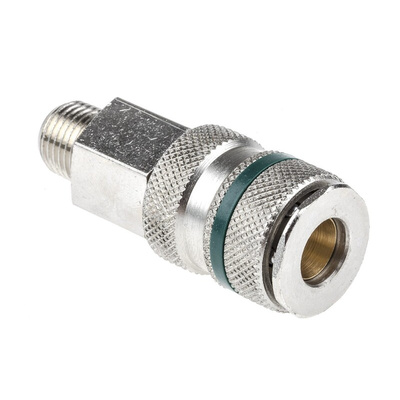

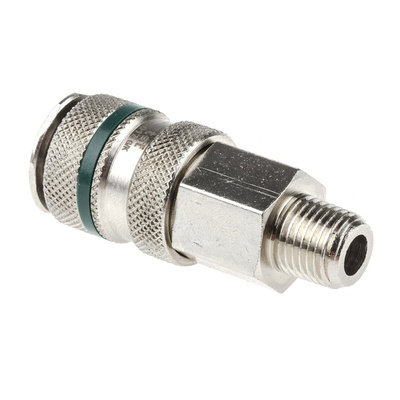

RS PRO Brass, Steel Male Pneumatic Quick Connect Coupling, R 1/4 Male Threaded, Муфта

RS PRO Pneumatic Quick Connect Coupling Brass, Steel 1/4 in Threaded

Designed to join up sections of pipe, tube or hose in pressurised gas systems, these miniature pattern connectors allow connections to be made quickly and easily.

These pneumatic quick-connect coupling connectors are a versatile choice as they operate effectively in a temperature range of -20°C to 100°C. They can also function at up to 35 bars of pressure. With their small body dimensions, high flow rate and low pressure drop, they establish reliable and precise connections. The nickel-plated couplings have threaded fittings with a 1/4-inch thread size, letting you connect sections and seal up pneumatic systems with minimal effort. As an alternative to corrosive or contaminating sealants, the connector has a nitrile rubber seal that ensures a tight fit to maintain gas pressure.

Pneumatic quick-connect coupling connectors are suitable for a broad range of pneumatic systems. You'll find them in machinery as varied as dental equipment and small air tools.

Features and Benefits

• Rectus 17, Schrader NW5 connection standard
• Male coupling gender
• R 1/4-inch male threaded connection
• R thread standard (tapered for a tighter seal)
• Maximum operating pressure of 35 bar
• Made of brass and steel with a nickel-plated finish
• Nitrile rubber seal
• Minimum operating temperature of -20°C
• Maximum operating temperature of 100°C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
