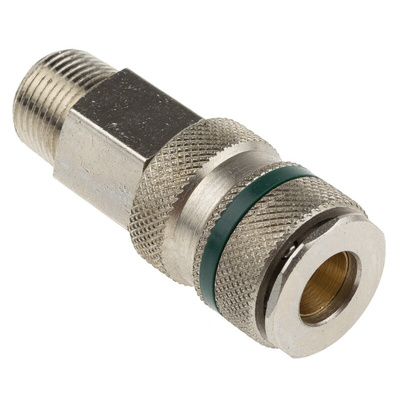

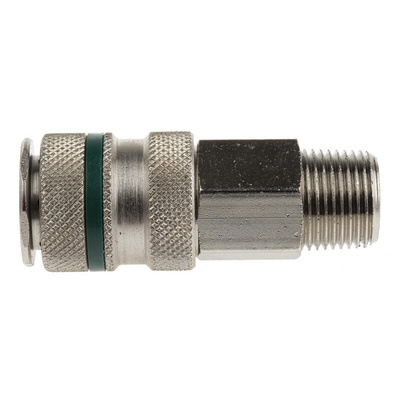

RS PRO Brass, Steel Male Pneumatic Quick Connect Coupling, R 3/8 Male Threaded, Муфта

RS PRO Pneumatic Quick Connect Coupling Brass, Steel 3/8 in Threaded

When you need a way to connect pipes, tubes and hoses in a pneumatic system, turn to this pneumatic quick-connect coupling from RS PRO. It lets you make easy and reliable one-handed connections.

With 3/8-inch male threads and a nitrile rubber seal to provide a tight fit, this coupling makes it easy to keep the gas pressure of a system stable. It has a nickel-plated body of brass and steel that's highly durable, even at pressures of up to 35 bar. It's also effective at temperatures ranging from -20°C to +100°C. the connector's small size delivers a high flow rate and low pressure drop for reliable connections. As a safety feature, it has a single shut-off design to ensure that it shuts down automatically in case of a broken connection.

This pneumatic quick-connect coupling is used for applications as diverse as dentistry equipment and small air tools.

Features and Benefits

• Rectus 17 and Schrader NW5 connection standards
• R 3/8-inch male threaded connection
• R thread standard for a tighter seal
• Brass and steel body with a nickel-plated finish
• Nitrile rubber seal
• Maximum operating pressure of 35 bar
• Minimum operating temperature of -20°C
• Maximum operating temperature of +100°C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
