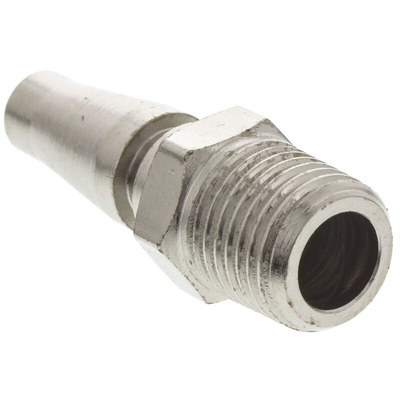

RS PRO Brass, Steel Male Pneumatic Quick Connect Coupling, R 1/4 Male Threaded, Муфта

RS PRO Pneumatic Quick Connect Coupling Brass, Steel 1/4 in Threaded

When you want to link up sections of pipe, tube or hose in pressurised gas systems, these miniature pattern connectors allow connections to be made quickly and easily.

To make connections reliable and accurate, these connectors have small body dimensions, a high flow rate and a low-pressure drop. A versatile choice, they function at up to 35 bars of pressure and within a temperature range of +20°C to +100°C. To save you from using potentially corrosive or contaminating sealants, the connector has a nitrile rubber seal to guarantee a tight fit that maintains gas pressure. The nickel-plated couplings have a 1/4-inch thread size that joins and seal connections in pneumatic systems with minimal effort.

Part of the RS PRO range, these pneumatic quick-connect coupling connectors have been stringently tested for consistency. You'll find them in specialist pneumatic systems such as those used in dentistry.

Features and Benefits

• Connection standard of Rectus 17, Schrader NW5
• Male coupling
• R 1/4-inch threaded connection
• Maximum operating pressure of 35 bar
• Made of brass and steel with a nickel-plated finish
• Nitrile rubber seal
• Operating temperature range of -20°C to +100°C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
