RS PRO 19 Series Y Threaded Adaptor Push In 6 mm, R 1/4 Male to R 1/4 Male, Threaded-to-Tube Connection Style

RS PRO Threaded-to-Tube Pneumatic Y Threaded-to-Tube Adapter, R 1/4 x R 1/4 x Push In 6 mm, 35 bar

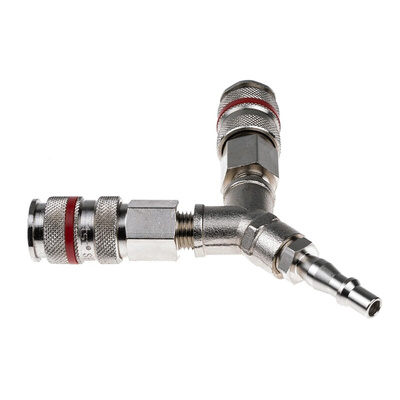

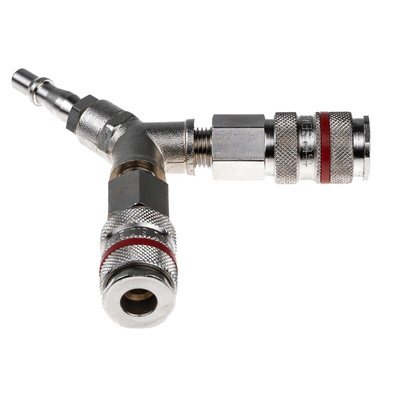

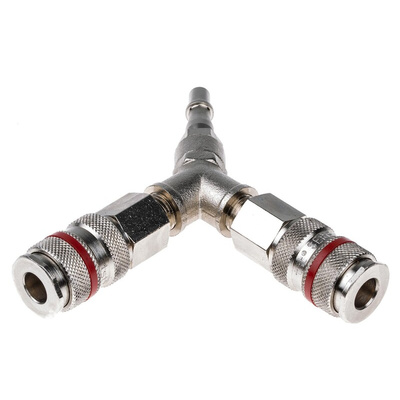

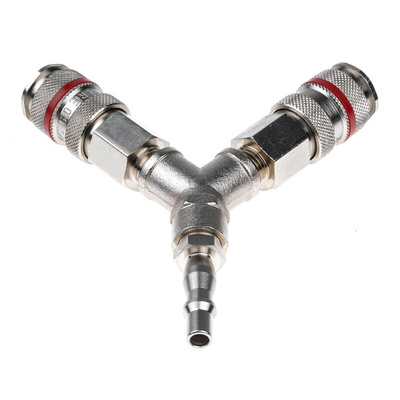

Use this Y-shaped, threaded-to-tube pneumatic adapter to enable more complicated joins in hoses, pipes and tubes. The quick-connect, push-in system allows you to make a fast connection with just one hand and also facilitates a single shut off.

Both male connectors at the top of the 'Y' shape are a standard R type with a quarter-inch thread size. The 6-millimetre branch connector is a practical push-in type for easy operation. This adapter can be used with parts from the CEJN 295, Rectus 19 and PCL Airflow series.

The pneumatic adapter has a nickel-plated brass body to protect against wear and corrosion. The sleeve, springs and plug are made from hardwearing stainless steel. This coupling has a maximum operating pressure of 35 bar and a maximum operating temperature of +100°C. Pneumatic Y threaded-to-tube adapters of this type are typically used in industrial settings, such as the aviation and auto industries.

Features and Benefits

• Pneumatic Y Threaded-to-Tube Adapter
• Threaded-to-Tube connection style
• Connector thread sizes are R 1/4 and R 1/4
• Connector C is a hose barb connection
• Operating temperature range of -20°C to +100°C
• Maximum operating pressure of 35 bar
• Threaded connection of R 1/4 Male
• Inline mounting
• Push-In 6 mm branch connector
• Manufacturer series 19
• Made from brass with nickel plating
• Interchangeable with PCL Airflow, CEJN 295 and Rectus 19 series parts
• RoHS compliant for restricted hazardous substances
• Meets Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
