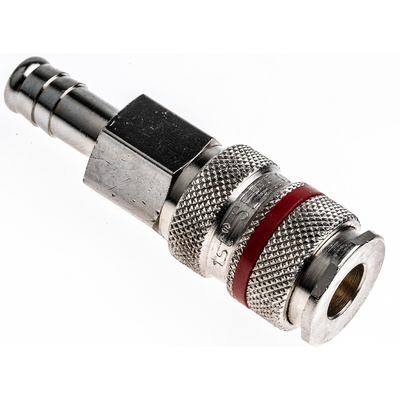

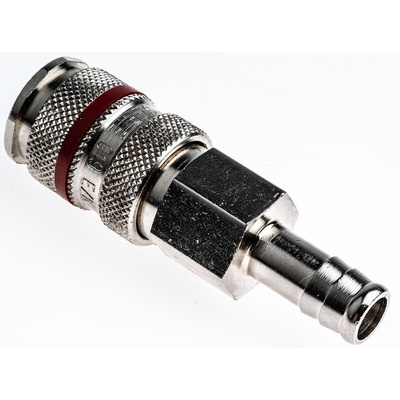

RS PRO Brass Male Pneumatic Quick Connect Coupling, 10mm Hose Barb, Муфта

RS PRO Pneumatic Quick Connect Coupling Brass 10 mm Hose Barb

This hose barb coupler from RS PRO allows you to attach hoses, piping and tubing with a simple push. These type of pneumatic quick connect couplings are suitable for a wide range of industrial applications, including chemistry laboratory equipment and compressed air tools.

Hose barb couplers are male connectors with a quick-connect system that's easily operable with one hand. The hose barb connection on this model measures 10 mm.

The coupling's body is made of corrosion-resistant, hardwearing nickel-plated glass. A nitrile rubber seal protects the coupler from liquids, including gasoline, oil and some hydraulic fluids. The coupling has a maximum operating pressure of 35 bar and a maximum operating temperature of +100°C.

This coupler complies with connection standard PLC 60 and is interchangeable with parts from the Rectus 19 standard series. Part of the tried and tested RS PRO range, this product has undergone strict quality controls to ensure safety.

Features and Benefits

• Pneumatic quick connect coupling
• Hose barb connection of 10 mm
• Connection standard of PLC 60, Rectus 19
• Operating temperature range of -20°C to +100°C
• Maximum operating pressure of 35 bar
• Male thread connection
• Manufacturer series 19
• Nickel-plated brass couple body
• Nitrile rubber seal to resist corrosion
• Male coupling
• Made from brass
• Plated with nickel
• Interchangeable with PCL Airflow, CEJN 295 and Rectus 19 series parts
• RoHS compliant for restricted hazardous substances
• Meets Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
