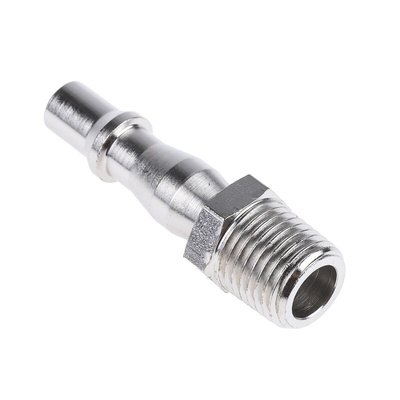

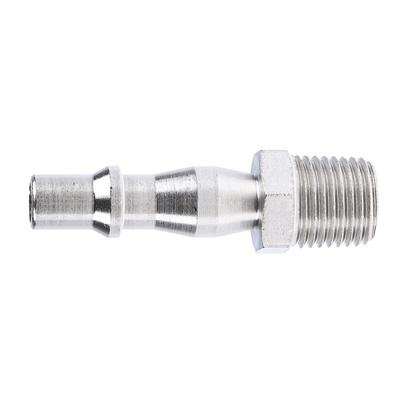

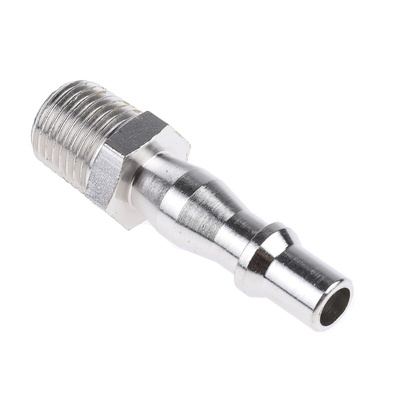

RS PRO Brass Male Pneumatic Quick Connect Coupling, R 1/4 Male Threaded, Муфта

RS PRO Pneumatic Quick Connect Coupling Brass 1/4 in Threaded

This pneumatic quick-connect coupling from the RS PRO range lets you connect tubes, hoses and pipes for one-handed operation and single shut-off capabilities. It's interchangeable with PCL Airflow, CEJN 295 and Rectus 19 series parts.

The coupling has a male threaded connection that's 1/4 in long and is standard R in type. With a nickel-plated brass body, it's highly corrosion-resistant, while a nitrile rubber seal protects the connection from substances such as water, oils, gasoline and some hydraulic fluids. It's also suitable for high-pressure applications or environments with extreme cold or heat. You can use the coupling at pressures up to 35 bars and at temperatures ranging from -20°C to +100°C.

The pneumatic quick-connect coupling is useful for the airline and automotive industries, as well as for use with air tools.

Features and Benefits

• Pneumatic quick-connect coupling
• Connection standard of PLC 60, Rectus 19
• Threaded R-standard 1/4 in male connection
• Nickel-plated brass couple body
• Nitrile rubber seal
• Maximum operating pressure of 35 bar
• Minimum operating temperature of -20°C
• Maximum operating temperature of +100°C
• Interchangeable with PCL Airflow, CEJN 295 and Rectus 19 series parts

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
