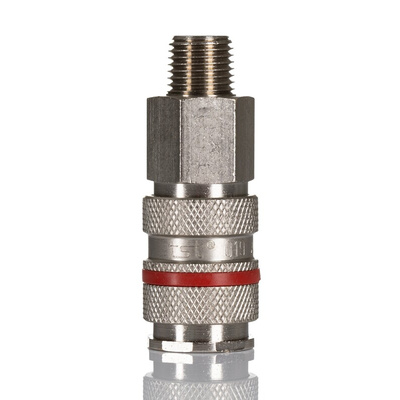

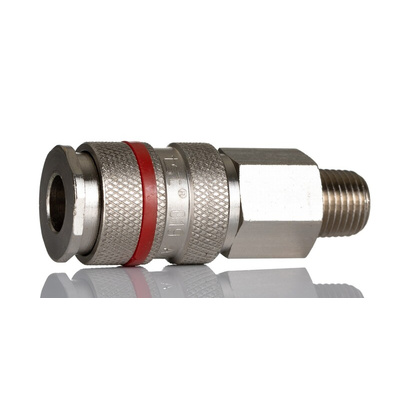

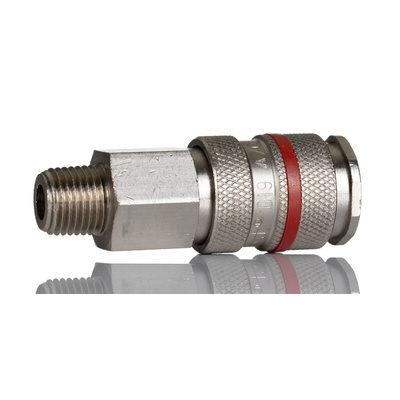

RS PRO Brass Male Pneumatic Quick Connect Coupling, R 1/4 Male Threaded, Муфта

RS PRO Pneumatic Quick Connect Coupling Brass 1/4 in Threaded

If you need a fast and easy way to attach pipes, hoses or tubes, turn to this pneumatic quick-connect coupling from RS PRO. It has a 1/4 in male R standard thread for use with a female coupling connector.

The coupling allows for one-handed operation and features single shut-off, so it will turn off immediately if the connection is disrupted. It's made of nickel-plated brass for corrosion and wear-resistance and the nitrile rubber seal keeps fluids out. It's even resistant to oils, gasoline and some hydraulic fluids. The coupling can also withstand a maximum operating pressure of 35 bars and temperatures as low as -20°C or as high as +100°C.

This pneumatic quick-connect coupling is interchangeable with PCL Airflow, CEJN 295 and Rectus 19 parts. It's useful for industrial applications ranging from airline and automotive tasks to air tools.

Features and Benefits

• Pneumatic quick-connect coupling
• Connection standard of PLC 60, Rectus 19
• Threaded R 1/4 in male connection
• Nickel-plated brass body
• Nitrile rubber seal
• Maximum operating pressure of 35 bar
• Minimum operating temperature of -20°C
• Maximum operating temperature of +100°C
• Interchangeable with PCL Airflow, CEJN 295 and Rectus 19 series parts

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
